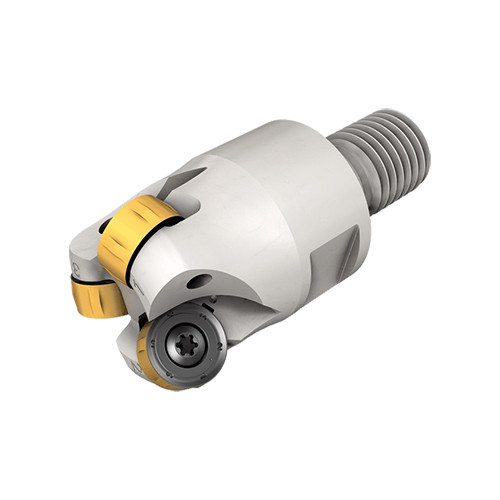

RDS ER D32/1.26-3-M16-12
Indexable End Mill; 0.79″ Dia. × 0.098″ LOC × 1.142″ Shank Dia. × 2.559″ OAL

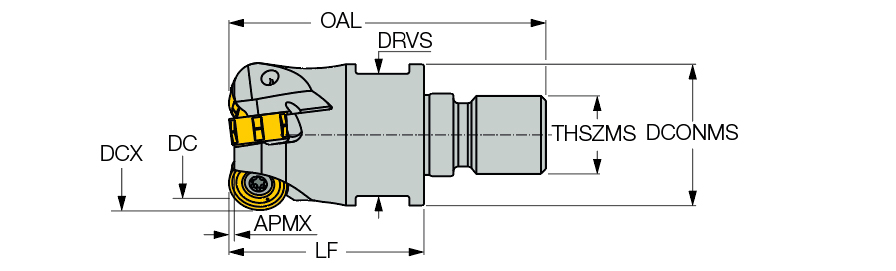

| Cutting Diameter (DC/DCX) | 0.79″ | Tool Type | Round corner cutters |
| Cutting Diameter (DC) | 0.79″ | Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Cutting Item Count (CICT) | 3 | Drive Size (DRVS) | 0.984″ |
| Depth of Cut Maximum (APMX) | 0.098″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 2.559″ | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 0.9 Degrees | Measurement Type | Inch |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1.142″ | Connection Code Machine Side (CCMS) | FLEXFIT |
| Master Insert Identification (MIID) | RDS RNMU1255EN-HP | Cutting Diameter Maximum (DCX) | 1.26″ |
| Functional Length (LF) | 1.575″ |
Product Features
| Family Description | Endmills with FLEXFIT threaded connection carrying double-sided round inserts with 12 cutting edges | Country of Origin | Israel |
| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. For adaptation, click on More Info |
Shipping Info
Package Weight
0.571
