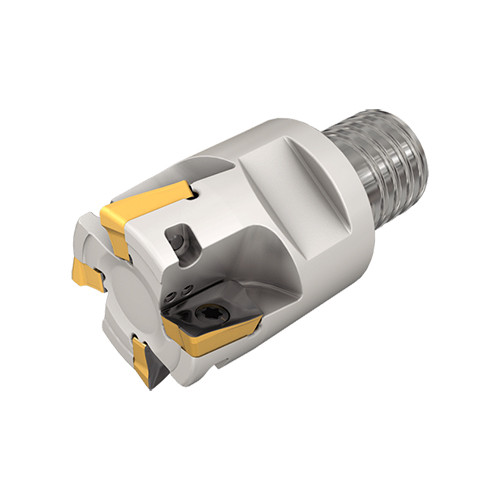

HM90 E90A D20-3-MMT12-JHP
Indexable End Mill; 0.787″ Dia. × 0.3937″ Max Depth × 0.776″ Shank Dia. × 1.516″ OAL ; 3 FL ; 90 Degrees

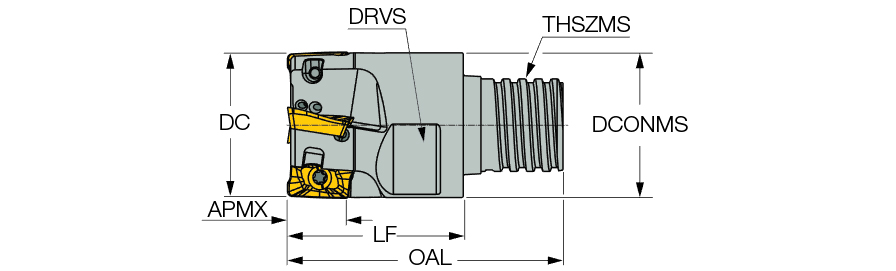

| Cutting Diameter (DC/DCX) | 20 mm | Tool Type | 90° indexable endmills |
| Cutting Diameter (DC) | 20 mm | Connection Thread Nominal Size Machine Side (THSZMS) | T12 |
| Cutting Item Count (CICT) | 3 | Drive Size (DRVS) | 16 mm |
| Depth of Cut Maximum (APMX) | 9.8 mm | Flute Count (NOF) | 3 |
| Overall Length (OAL) | 38.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 7.5 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Counter Boring | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 19.7 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | APKT 1003PDR-HM | Body Material | Steel |
| Functional Length (LF) | 25.5 mm | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features
| Family Description | 90° JHP endmills with a MULTI-MASTER threaded adaptation carrying HELI2000 and HELIMILL Inserts | Country of Origin | Israel |
| Remarks | 1- with standard square insert 2- with FF (fast feed) insert Do not apply lubricant to the MULTI-MASTER threaded connection For tightening torque click on More Info |
Shipping Info
Package Weight
0.291
