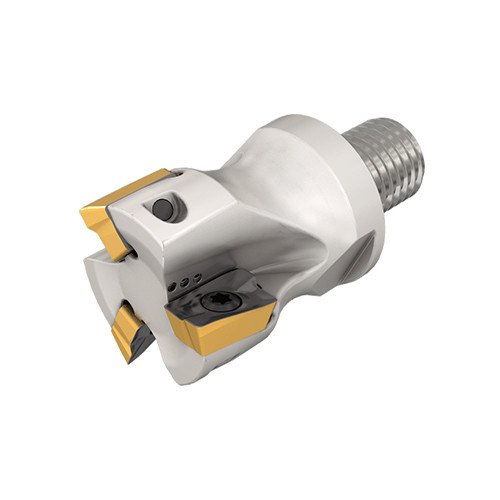

HM90 E90AD D32-3-M16-JHP
Indexable End Mill; 1.26″ Dia. × 0.563″ Max Depth × 1.201″ Shank Dia. × 2.559″ OAL ; 3 FL ; 90 Degrees

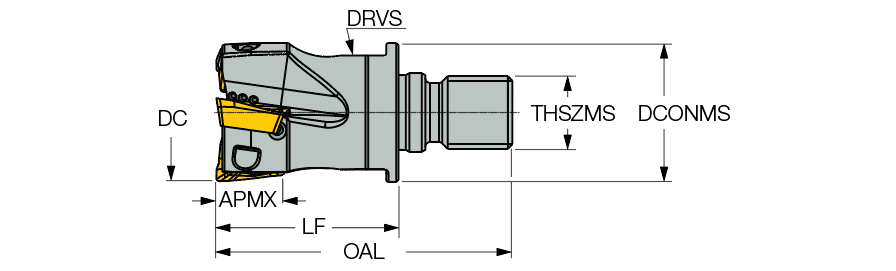

| Cutting Diameter (DC/DCX) | 32 mm | Tool Type | 90° indexable endmills |
| Cutting Diameter (DC) | 32 mm | Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Cutting Item Count (CICT) | 3 | Drive Size (DRVS) | 25 mm |
| Depth of Cut Maximum (APMX) | 14.3 mm | Flute Count (NOF) | 3 |
| Overall Length (OAL) | 65 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 5.3 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Counter Boring | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 30.5 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | ADKT 1505PDTR | Body Material | Steel |
| Functional Length (LF) | 40 mm | Connection Code Machine Side (CCMS) | FLEXFIT |
Product Features
| Family Description | 90° JHP endmills with a FLEXFIT threaded adaptation carrying HELI2000 and HELIMILL inserts | Country of Origin | Israel |
| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. 1- with standard square insert 2- with FF (fast feed) insert For adaptation, click on More Info |
Shipping Info
Package Weight
0.597
