E90SP D40-04-C32-10

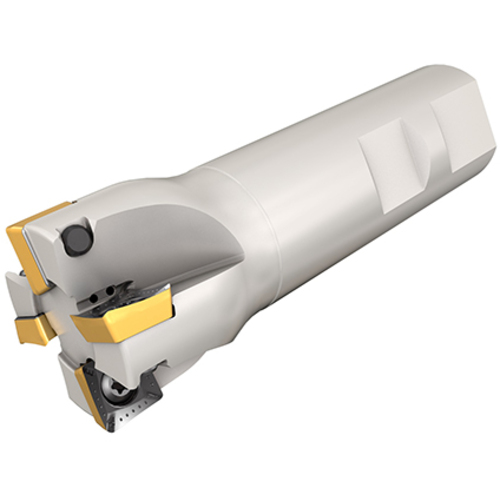

Indexable End Mill; 40 mm Dia. × 9.6 mm LOC × 32 mm Shank Dia. × 130 mm OAL × 32 mm LU ; 4 FL ; Round Shank
| Cutting Diameter (DC/DCX) | 40 mm | Functional Length (LF) | 130 mm |
| Cutting Diameter (DC) | 40 mm | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 4 | Usable Length (LU) | 32 mm |
| Depth of Cut Maximum (APMX) | 9.6 mm | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 130 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 1.5 Degrees | Measurement Type | Metric |
| Application | | Facing | Fast Feed Milling | Rampdown | Shouldering | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Master Insert Identification (MIID) | SPMT 100404R-HQ-M |
Product Features
| Family Description | HELIQUAD endmills carrying square inserts. | Country of Origin | Israel |
| Remarks | 1- with standard square insert 2- with FF (fast feed) insert For adaptation, click on More Info. |
Shipping Info
Package Weight
0.589
