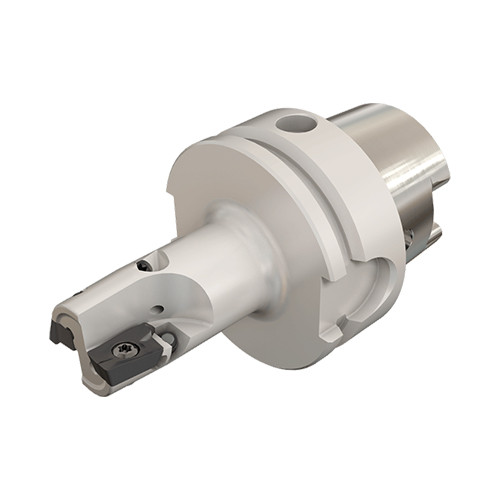

E90AD D25-2-L050-HSK63-S

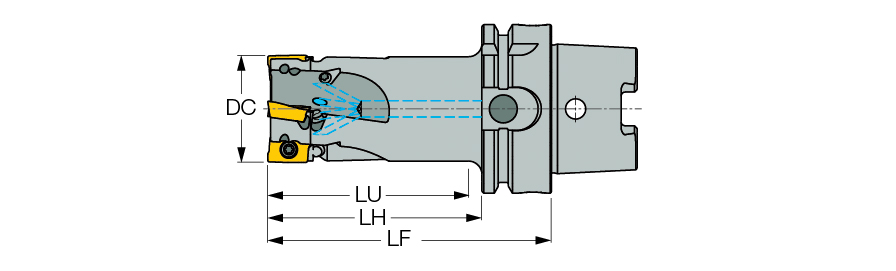

| Cutting Diameter (DC/DCX) | 25 mm | Tool Type | 90° indexable endmills |
| Cutting Diameter (DC) | 25 mm | Usable Length (LU) | 45 mm |
| Cutting Item Count (CICT) | 2 | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | HSK-A | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Shouldering | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | ADKT 1505PDTR-76 | Body Material | Steel |
| Head Length (LH) | 50 mm | Connection Code Machine Side (CCMS) | HSK |
| Functional Length (LF) | 76 mm |
Product Features
| Family Description | Adjustable endmills (used mainly for PCD/CBN inserts). The adjustable tools provide excellent surface finish and prolong insert life. | Country of Origin | Israel |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) |
