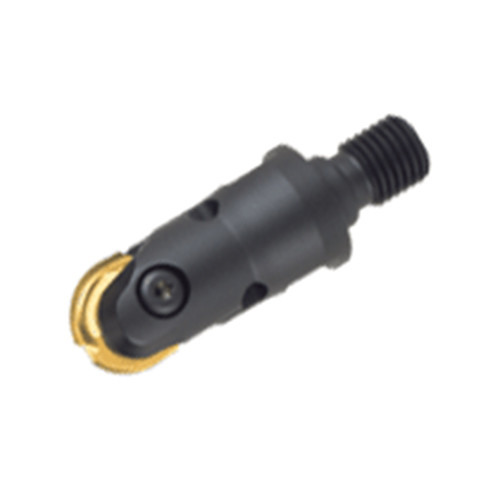

CDP D20-M12
| Cutting Diameter (DC/DCX) | 0.787″ | Connection Thread Nominal Size Machine Side (THSZMS) | M12 |
| Cutting Diameter (DC) | 0.787″ | Drive Size (DRVS) | 0.669″ |
| Cutting Item Count (CICT) | 2 | Flute Count (NOF) | 2 |
| Depth of Cut Maximum (APMX) | 0.543″ | Corner Radius (RE) | 0.3937″ |
| Ramping Angle Maximum (RMPX) | 90 Degrees | Body Half Taper Angle (BHTA) | 3.1 Degrees |
| Application | | Profiling | | Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 0.827″ | Cutting Direction (HAND) | Right Hand |
| Master Insert Identification (MIID) | CRF D200-QF | Measurement Type | Inch |
| Functional Length (LF) | 2.165″ | Body Material | Steel |
| Tool Type | Ball nose endmills | Connection Code Machine Side (CCMS) | FLEXFIT |
Product Features
| Family Description | Ball nose endmills (HELIBALL) with FLEXFIT threaded adaptation. | Country of Origin | Israel |
| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. For adaptation, click on More Info |
Shipping Info
Package Weight
0.434
