RDS FR D052-06-22-12

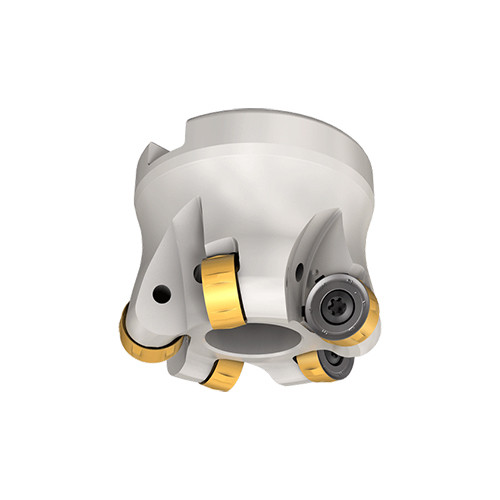

Indexable Face Mill; 52 mm Dia. × 22 mm Shank Dia. × 40 mm OAL × 2.5 mm LOC ; 6 Inserts

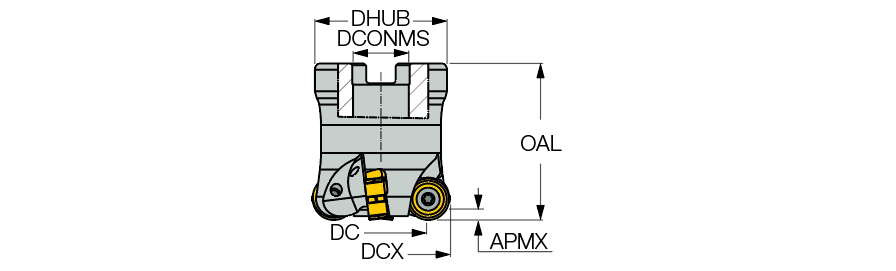

| Cutting Diameter (DC/DCX) | 52 mm | Arbor Style | A |
| Cutting Diameter (DC) | 39.9 mm | Master Insert Identification (MIID) | RDS RNMU1255EN-HP |
| Cutting Diameter Maximum (DCX) | 52 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 6 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 2.5 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Application | | Facing | Helical Interpolation | Profiling | Rampdown | |
| Overall Length (OAL) | 40 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 48 mm | Tool Type | Round corner cutters |
Product Features
| Family Description | Face mills carrying double-sided round inserts with 12 cutting edges | Country of Origin | Israel |
Shipping Info
Package Weight
1.098
