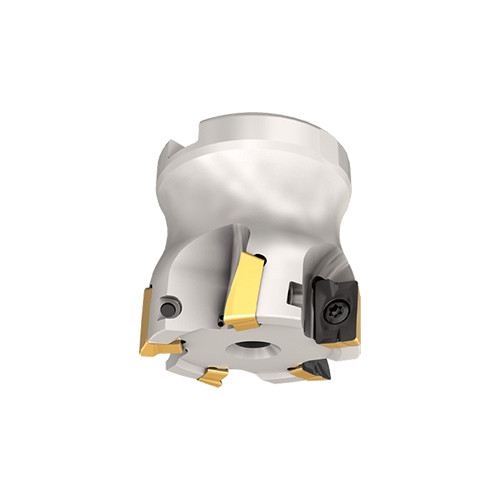

HM90 F90A D2.00-5-.75-JHP
Indexable Face Mill; 2″ Dia. × 3/4″ Shank Dia. × 1.57″ OAL × 0.56″ LOC ; 5 Inserts ; 90 Degrees

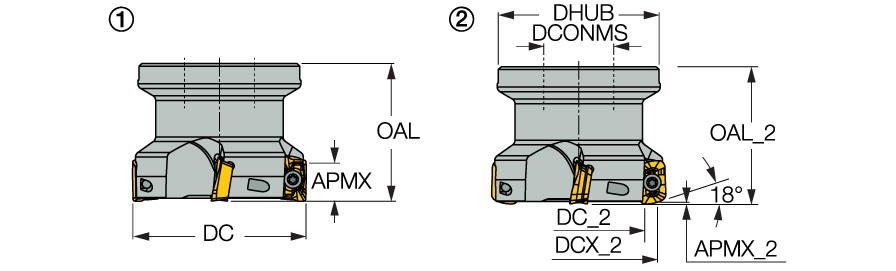

| Cutting Diameter (DC/DCX) | 2″ | Master Insert Identification (MIID) | HM90 ADKT1505PDR |
| Cutting Diameter (DC) | 2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 5 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.56″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | | Counter Boring | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 1.57″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 1.85″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills |
Product Features
| Family Description | 90° JHP face mills carrying HELI2000 and HELIMILL inserts | Country of Origin | Israel |

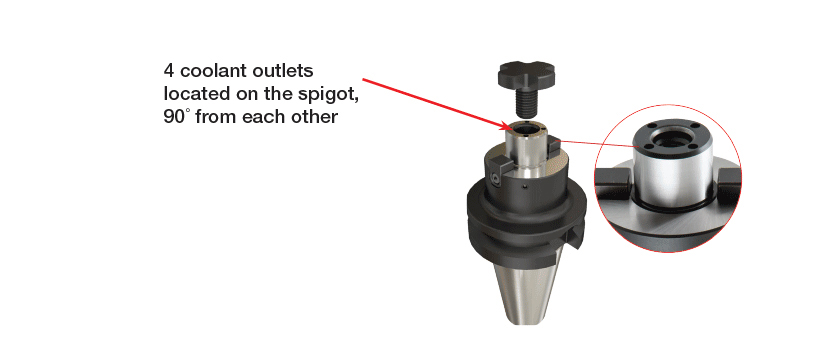

| Remarks | 1- with standard square insert 2- with FF (fast feed) insert Use adaptation only with face coolant outlets ( click on More Info) |
Shipping Info
Package Weight
0.492
