FRMT D051A063-06-22-12

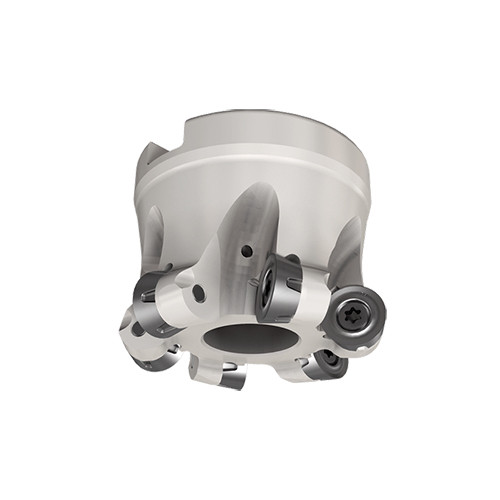

Indexable Face Mill; 63 mm Dia. × 22 mm Shank Dia. × 40 mm OAL × 3.8 mm LOC ; 6 Inserts

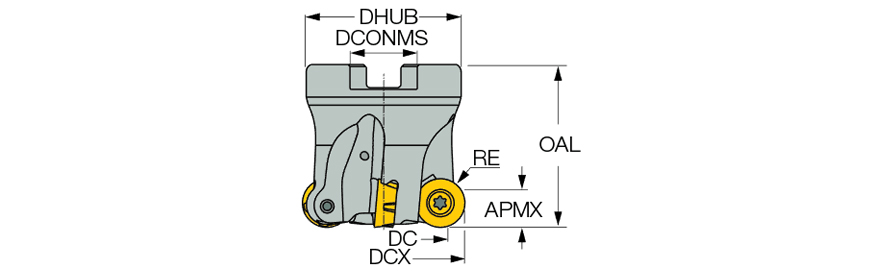

| Cutting Diameter (DC/DCX) | 63 mm | Arbor Style | A |
| Cutting Diameter (DC) | 51 mm | Master Insert Identification (MIID) | RP...X 1204M0 ... |
| Cutting Diameter Maximum (DCX) | 63 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 6 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 3.8 mm | Cutting Direction (HAND) | R- |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Application | | Facing | Plunging & Recessing | Profiling | Rampdown | |
| Overall Length (OAL) | 40 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 48 mm |
Product Features
| Family Description | Face mills for machining 3D surfaces of turbomachinery blades | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Package Weight
1.188
