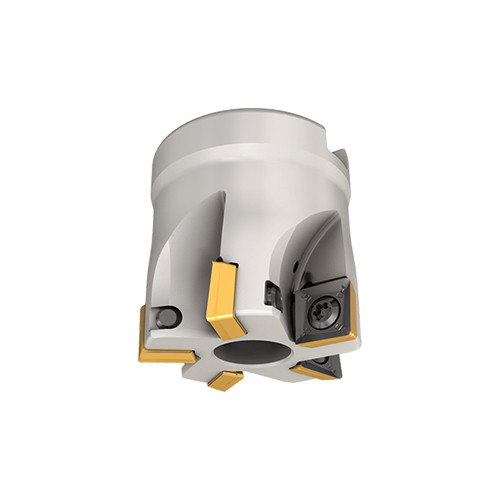

F90SP D40-05-16-10
Indexable Face Mill; 40 mm Dia. × 16 mm Shank Dia. × 40.26 mm OAL × 9.6 mm LOC ; 5 Inserts ; 90 Degrees

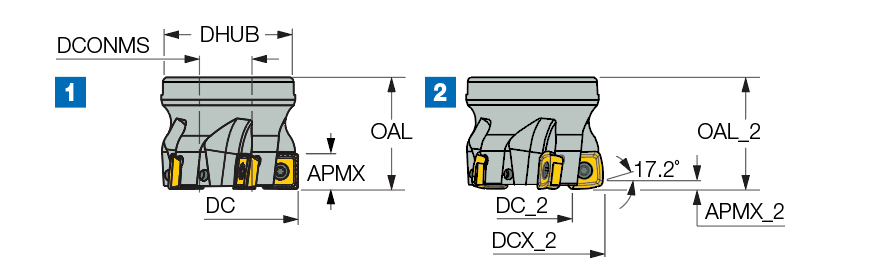

| Cutting Diameter (DC/DCX) | 40 mm | Master Insert Identification (MIID) | SPMT 100404R-HQ-M |
| Cutting Diameter (DC) | 40 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 5 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 9.6 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | | Facing | Fast Feed Milling | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 40 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 38 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills |
Product Features
| Family Description | HELIQUAD face mills carrying square inserts | Country of Origin | Israel |
| Remarks | 1- with standard square insert 2- with FF (fast feed) insert |
Shipping Info
Package Weight
0.847
