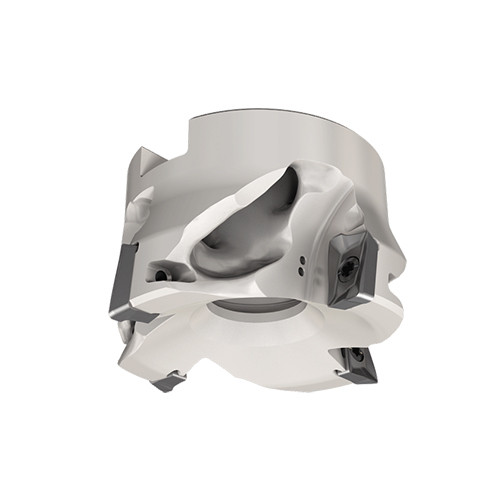

HM90 F90AP D50-4-22-AMT
Indexable Face Mill; 50 mm Dia. × 22 mm Shank Dia. × 29.63 mm OAL × 9.8 mm LOC ; 4 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 50 mm | Master Insert Identification (MIID) | HM90 APCT 100302R-PDR |
| Cutting Diameter (DC) | 50 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 50 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 4 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 9.8 mm | Application | | Counter Boring | Facing | Fast Feed Milling | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Overall Length (OAL) | 30 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 42 mm | Tool Type | 90° Facemills |
| Arbor Style | A |
Product Features
| Family Description | 90° Light Weight Face Cutters Carrying HM90 AP...T 1003 inserts | Country of Origin | Israel |
| Remarks | 1- with standard square insert 2- with FF (fast feed) insert For user guide, see pages |
Shipping Info
Package Weight
0.489
