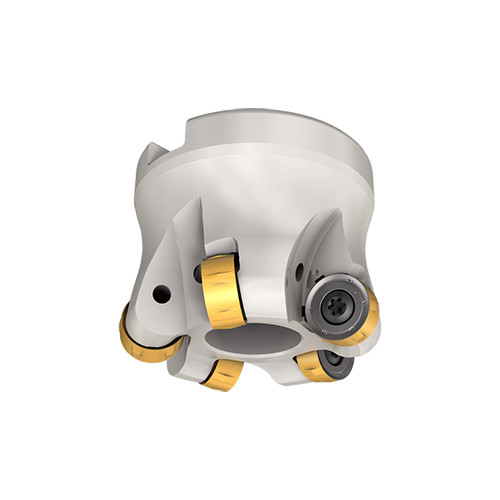

RDS FR D1.50-04-0.50-12
Indexable Face Mill; 1-1/2″ Dia. × 1/2″ Shank Dia. × 1-1/4″ OAL × 0.098″ LOC ; 4 Inserts

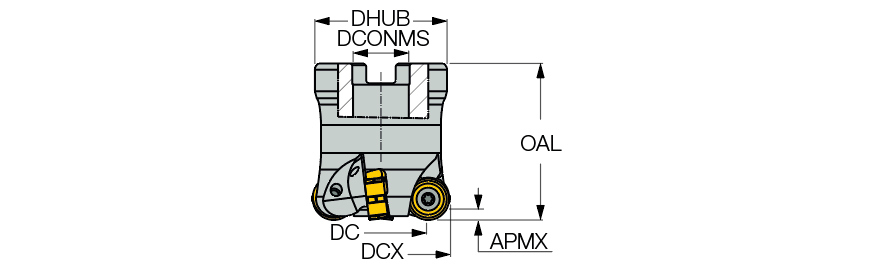

| Cutting Diameter (DC/DCX) | 1-1/2″ | Arbor Style | A |
| Cutting Diameter (DC) | 1.026″ | Master Insert Identification (MIID) | RDS RNMU1255EN-HP |
| Cutting Diameter Maximum (DCX) | 1-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 4 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.098″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Application | | Facing | Helical Interpolation | Profiling | Rampdown | |
| Overall Length (OAL) | 1-1/4″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 1.417″ | Tool Type | Round corner cutters |
Product Features
| Family Description | Face mills carrying double-sided round inserts with 12 cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
0.675
