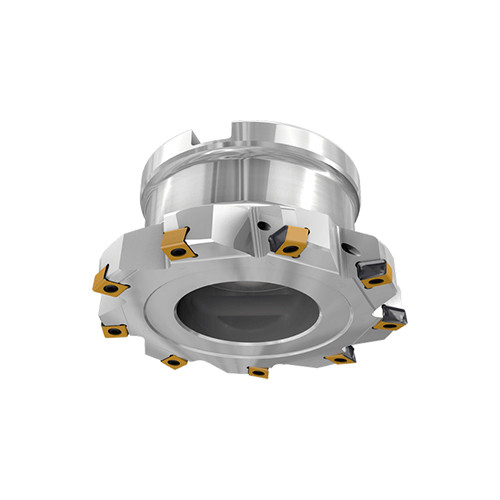

HTF D080-07-25.4-R-LN10
Indexable Face Mill; 80 mm Dia. × 25.4 mm Shank Dia. × 50 mm OAL × 0.35 mm LOC ; 7 Inserts

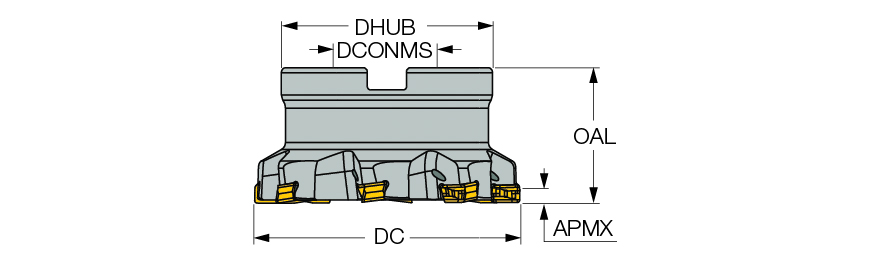

| Cutting Diameter (DC/DCX) | 80 mm | Arbor Style | B |
| Cutting Diameter (DC) | 80 mm | Master Insert Identification (MIID) | HTP LNAR 1006 FR |
| Cutting Item Count (CICT) | 7 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 0.35 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 50 mm | Application | | Facing | Shouldering | |
| Hub Diameter (DHUB) | 56 mm | Measurement Type | Metric |
Product Features
| Family Description | Face mills carrying tangentially clamped inserts with 4 cutting edges for extra fine milling applications | Country of Origin | Israel |

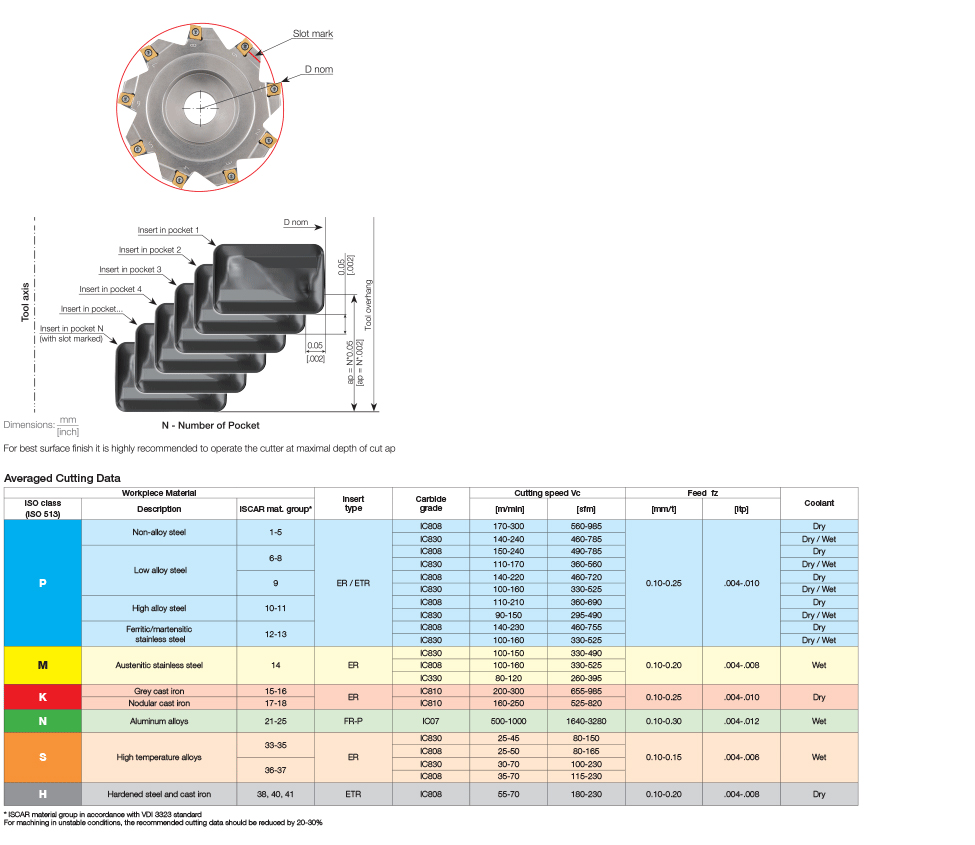

| Remarks | For best surface finish it is highly recommended to operate the cutter at maximal depth of cut For user guide, click on More Info |
Shipping Info
Package Weight
2.008
