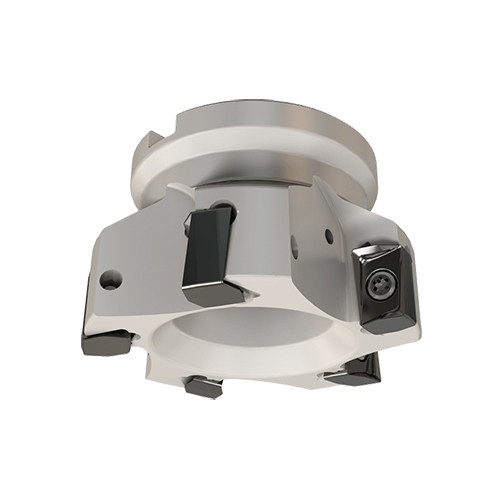

H490 F90AX D050-5-22-17
Indexable Face Mill; 50 mm Dia. × 22 mm Shank Dia. × 39.86 mm OAL × 16.3 mm LOC ; 5 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 50 mm | Master Insert Identification (MIID) | H490 ANKX 170604PNTR |
| Cutting Diameter (DC) | 50 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 50 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 5 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 16.3 mm | Application | | Facing | Rampdown | Shouldering | Side Plunging | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Overall Length (OAL) | 40 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 48 mm | Tool Type | 90° Facemills |
| Arbor Style | A |
Product Features
| Family Description | 90° face mills carrying H490 ANKX 17.. double-sided rectangular inserts with 4 helical cutting edges (HELIDO 490 LINE). | Country of Origin | Israel |

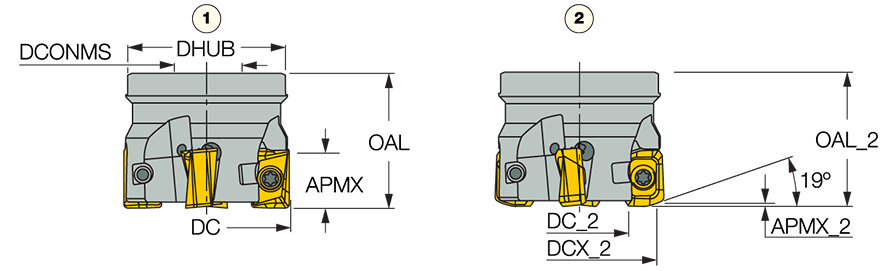

| Remarks | 1- with standard square insert, 2- with FF (fast feed) insert Ramping angle is valid only when H490 ANKX 1706R15T-FF insert is used When assembled the H490 ANKX 1706R15T-FF insert, tool diameter enlarges by 1.5 mm |
Shipping Info
Package Weight
1.049
