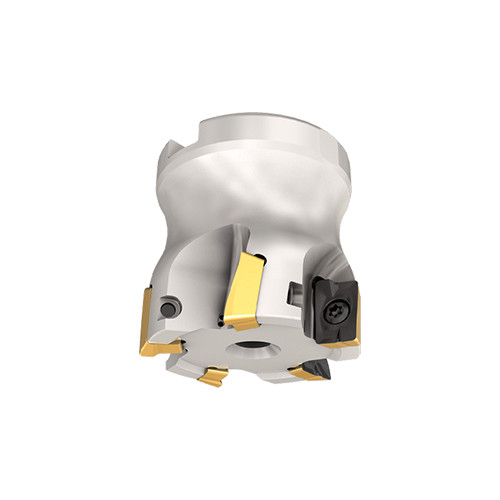

HM90 F90A D050-5-22-JHP
Indexable Face Mill; 50 mm Dia. × 22 mm Shank Dia. × 39.74 mm OAL × 14.3 mm LOC ; 5 Inserts ; 90 Degrees

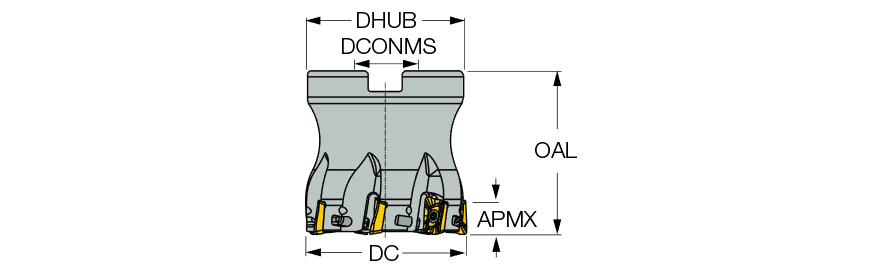

| Cutting Diameter (DC/DCX) | 50 mm | Master Insert Identification (MIID) | ADKT 1505PDTR |
| Cutting Diameter (DC) | 50 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 5 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 14.3 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Application | | Counter Boring | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 50 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 48 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills |
Product Features
| Family Description | HELI2000 JET CUT, 90° JHP face mills carrying HM90 AP 1003/HM90 AD...1505 | Country of Origin | Germany |

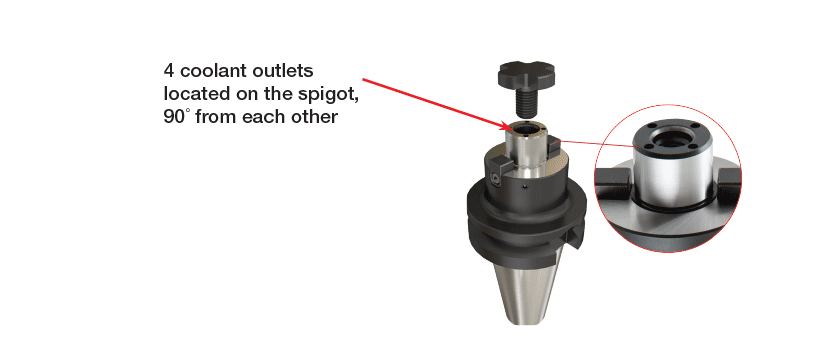

| Remarks | 1- with standard square insert 2- with FF (fast feed) insert Use adaptation only with face coolant outlets ( click on More Info) |
Shipping Info
Package Weight
1.325
