HM390 FTP D1.50-5-.50-10
Indexable Face Mill; 1-1/2″ Dia. × 1/2″ Shank Dia. × 1-1/4″ OAL × 0.315″ LOC ; 5 Inserts ; 90 Degrees

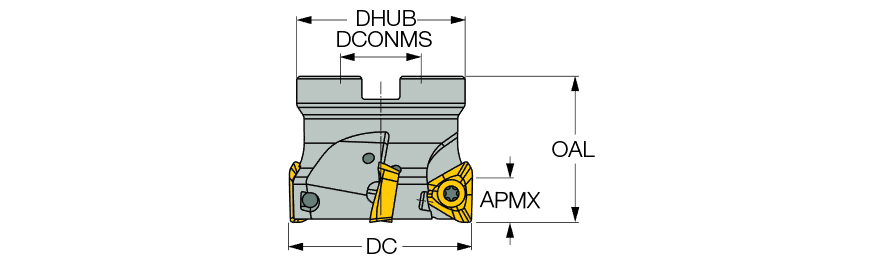

| Cutting Diameter (DC/DCX) | 1-1/2″ | Master Insert Identification (MIID) | HM390 TPKT 100304PDR |
| Cutting Diameter (DC) | 1-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 5 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.315″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 1-1/4″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 1.441″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills |
Product Features
| Family Description | 90° face mills carrying HM390 TPKT 1003 triangular inserts with 3 helical cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
0.68
