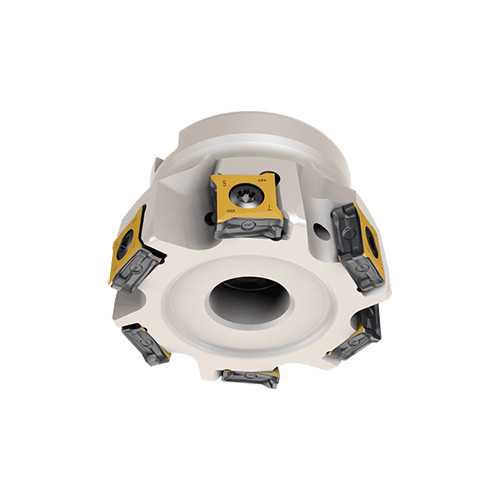

T890HT FLND100-08-31.7R13
Indexable Face Mill; 100 mm Dia. × 31.75 mm Shank Dia. × 50 mm OAL × 9.5 mm LOC ; 8 Inserts ; 90 Degrees

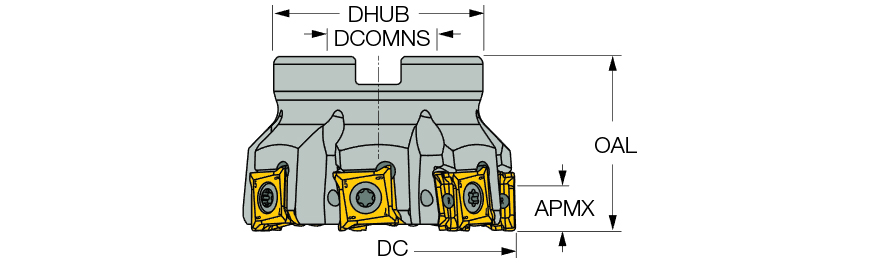

| Cutting Diameter (DC/DCX) | 100 mm | Master Insert Identification (MIID) | T890 LNHT 1306PNTR |
| Cutting Diameter (DC) | 100 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 8 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 9.5 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm | Application | | Facing | Shouldering | Slotting | |
| Overall Length (OAL) | 50 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 76 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | B | Tool Type | 90° Facemills |
Product Features
| Family Description | 90° face mills carrying T890 LNHT/LNAT 1306... tangentially clamped inserts with 8 cutting edges | Country of Origin | Israel |
Shipping Info
Package Weight
3.929
