F75 D063-05-22-M

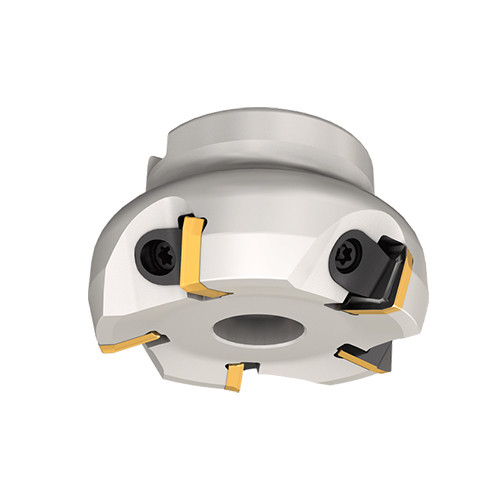

Indexable Face Mill; 68.7 mm Dia. × 22 mm Shank Dia. × 40 mm OAL × 9.5 mm LOC ; 5 Inserts ; 75 Degrees

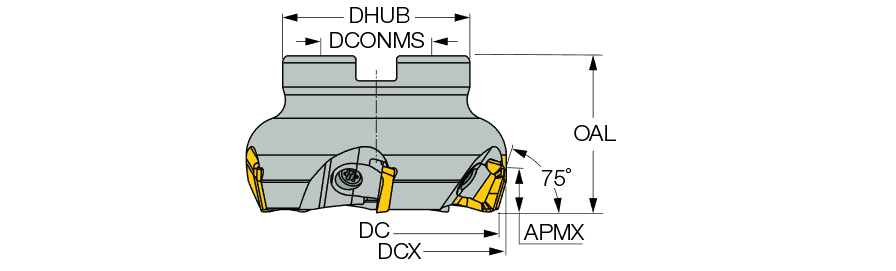

| Cutting Diameter (DC/DCX) | 68.7 mm | Master Insert Identification (MIID) | SPKN 1203EDTR |
| Cutting Diameter (DC) | 63 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 68.7 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 5 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 9.5 mm | Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Overall Length (OAL) | 40 mm | Tool Cutting Edge Angle (KAPR) | 75 Degrees |
| Hub Diameter (DHUB) | 48 mm | Tool Type | 70°-75° Facemills |
| Arbor Style | A |
Product Features
| Family Description | 75° face mills with SPKN/SPKR 1203.. inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
1.814
