ERMT D15A25-3-060-C25-10

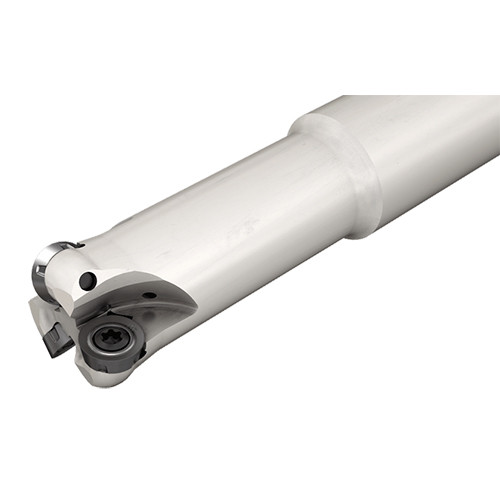

Indexable Face Mill; 25 mm Dia. × 120 mm OAL × 3.1 mm LOC ; 3 Inserts

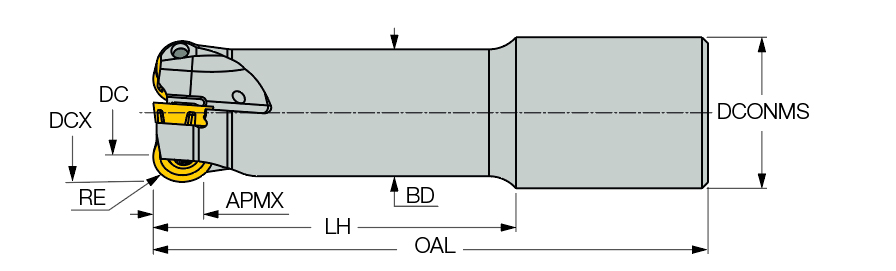

| Cutting Diameter (DC/DCX) | 25 mm | Master Insert Identification (MIID) | RPHX 1003MO-MT5 |
| Cutting Diameter (DC) | 15 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 25 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 3 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 3.1 mm | Application | | Facing | Plunging & Recessing | Profiling | Rampdown | |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Measurement Type | Metric |
| Overall Length (OAL) | 120 mm | Shank Type | Round |
Product Features
| Family Description | End Mills for Productive Machining of 3D Surfaces of Blades in Turbomachinery | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Package Weight
0.946
