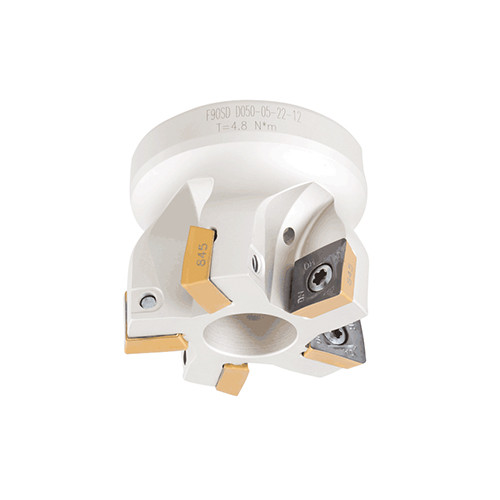

F90SD D80-05-27-12
Indexable Face Mill; 80 mm Dia. × 27 mm Shank Dia. × 50.35 mm OAL × 11.8 mm LOC ; 5 Inserts ; 90 Degrees

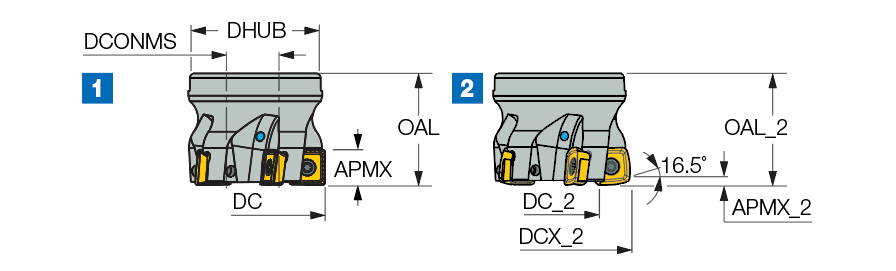

| Cutting Diameter (DC/DCX) | 80 mm | Master Insert Identification (MIID) | SDMT 1205PDR-HQ-M |
| Cutting Diameter (DC) | 80 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 5 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 11.8 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Application | | Facing | Fast Feed Milling | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 50 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 60 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | B |
Product Features
| Family Description | Face mills Carrying Square Inserts | Country of Origin | Israel |
| Remarks | 1- with standard square insert 2- with FF (fast feed) insert |
Shipping Info
Package Weight
2.059
