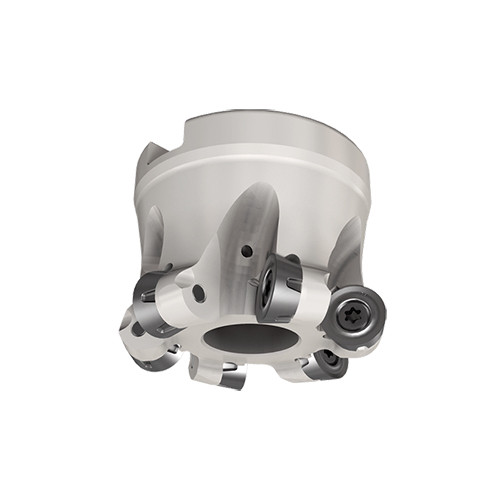

FRMT D1.50-04-0.50-12
Indexable Face Mill; 1-1/2″ Dia. × 1/2″ Shank Dia. × 1-1/2″ OAL × 0.149″ LOC ; 4 Inserts

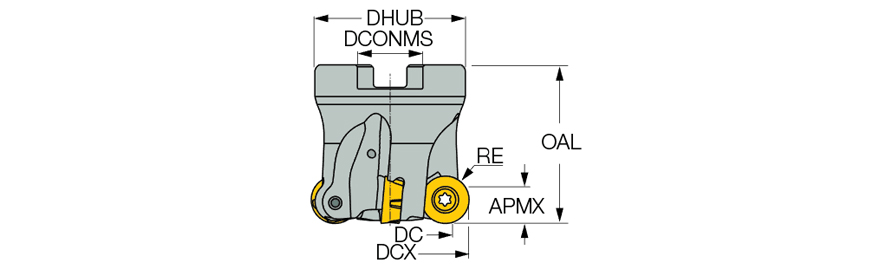

| Cutting Diameter (DC/DCX) | 1-1/2″ | Arbor Style | A |
| Cutting Diameter (DC) | 1.03″ | Master Insert Identification (MIID) | RP...X 1204M0 ... |
| Cutting Diameter Maximum (DCX) | 1-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 4 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.149″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Application | | Facing | Plunging & Recessing | Profiling | Rampdown | |
| Overall Length (OAL) | 1-1/2″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 1.42″ |
Product Features
| Family Description | Face mills for machining 3D surfaces of turbomachinery blades | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Package Weight
164
