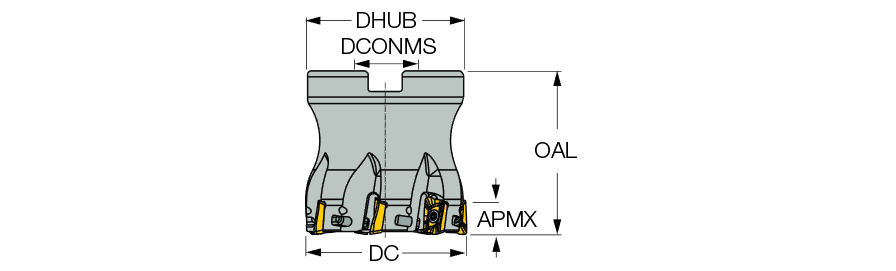

HM90 F90AP D040-6-16-JHP
Indexable Face Mill; 40 mm Dia. × 16 mm Shank Dia. × 40 mm OAL × 9.8 mm LOC ; 6 Inserts
| Cutting Diameter (DC/DCX) | 40 mm | Master Insert Identification (MIID) | APKT 1003PDR-HM |
| Cutting Diameter (DC) | 40 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 6 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 9.8 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | | Counter Boring | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 40 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 38.4 mm | Tool Type | 90° Facemills |
| Arbor Style | A |
Product Features
| Family Description | 90° JHP face mills carrying HELI2000 and HELIMILL inserts | Country of Origin | Israel |

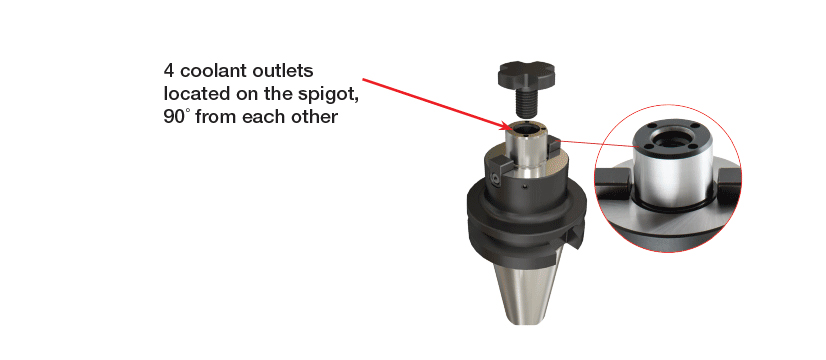

| Remarks | 1- with standard square insert 2- with FF (fast feed) insert Use adaptation only with face coolant outlets ( click on More Info) |
Shipping Info
Package Weight
341
