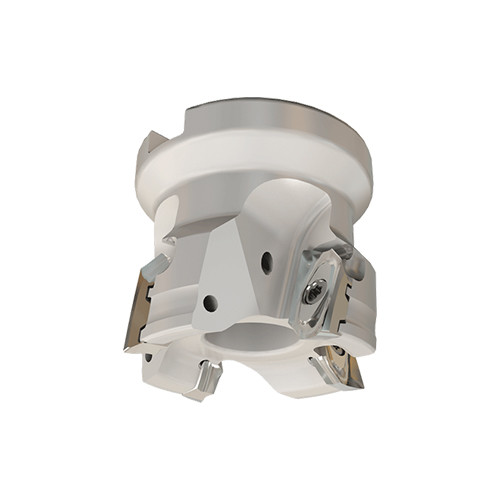

HM90 FAL-D063-5-27-15
Indexable Face Mill; 63 mm Dia. × 27 mm Shank Dia. × 50 mm OAL × 14 mm LOC ; 5 Inserts ; 90 Degrees

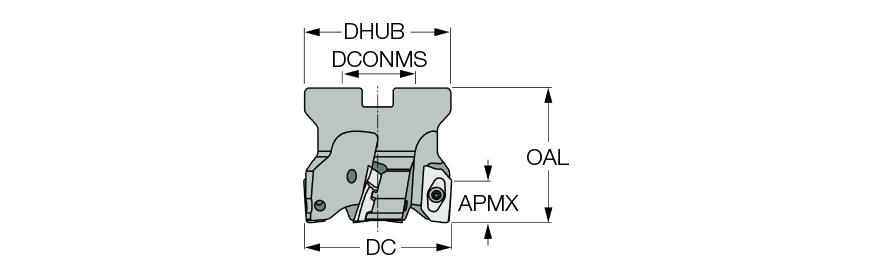

| Cutting Diameter (DC/DCX) | 63 mm | Master Insert Identification (MIID) | HM90 AXCR 150540R-P |
| Cutting Diameter (DC) | 63 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 5 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 14 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Application | | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 50 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 53 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills for Al. & HTA |
Product Features
| Family Description | Face mills carrying HM90 AXCR 1505.. HELIALU inserts for machining aluminum. | Country of Origin | Israel |
| Remarks | HM90 AXCR 150540R-P insert with a 4.0 mm or larger corner radius requires tool's corner modification |
Shipping Info
Package Weight
1.649
