S890 FSN D100-8-31.75-R13
Indexable Face Mill; 96.5 mm Dia. × 31.75 mm Shank Dia. × 51.2 mm OAL × 9 mm LOC ; 8 Inserts ; 89 Degrees

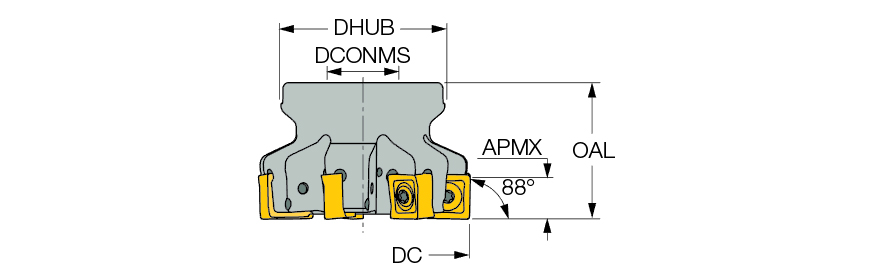

| Cutting Diameter (DC/DCX) | 96.5 mm | Master Insert Identification (MIID) | S890 SNMU 1305PNR |
| Cutting Diameter (DC) | 100 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 96.5 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 8 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 9 mm | Application | | Facing | Shouldering | |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Tool Cutting Edge Angle (KAPR) | 89 Degrees |
| Hub Diameter (DHUB) | 70 mm | Tool Type | 90° Facemills |

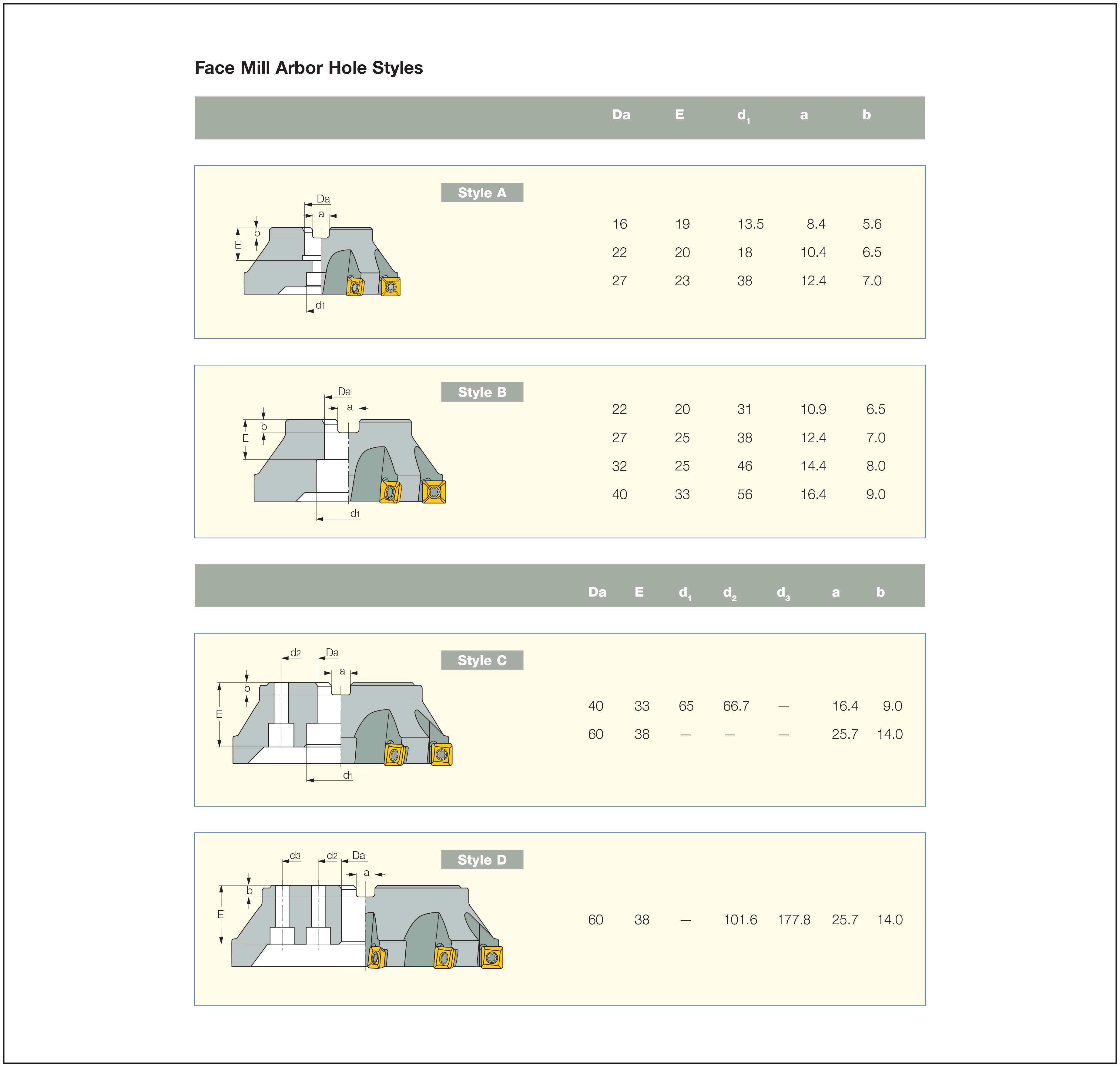

| Arbor Style | B |
Product Features

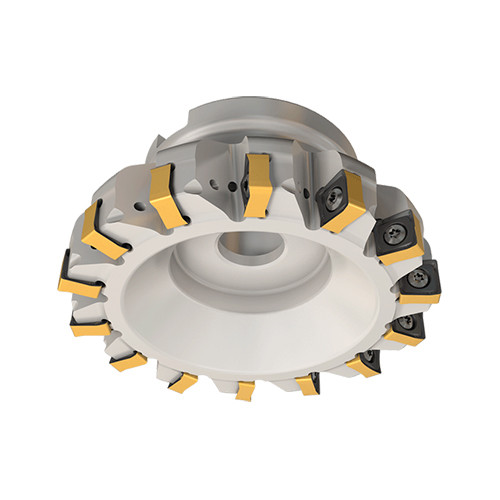

| Family Description | Face mills carrying inserts with 8 cutting edges. A very efficient solution for high metal removal of cast iron and steel components. The 88° lead angle minimizes burrs and edge chipping for cast iron applications. | Country of Origin | Israel |
| Remarks | Use only Torx Plus keys |
Shipping Info
Package Weight
3.433
