HOF D080-06-25.4-R06
Indexable Face Mill; 89.4 mm Dia. × 25.4 mm Shank Dia. × 51.2 mm OAL × 2.5 mm LOC ; 6 Inserts ; 42 Degrees
| Cutting Diameter (DC/DCX) | 89.4 mm | Master Insert Identification (MIID) | OEMT 060405AER-76 |
| Cutting Diameter (DC) | 80 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 89.4 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 6 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 2.5 mm | Application | | Facing | Helical Interpolation | Profiling | Rampdown | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Tool Cutting Edge Angle (KAPR) | 42 Degrees |
| Hub Diameter (DHUB) | 60 mm | Tool Type | 45° Facemills |
| Arbor Style | B |
Product Features
| Family Description | Face mills carrying octagonal, square or round inserts. | Country of Origin | Israel |

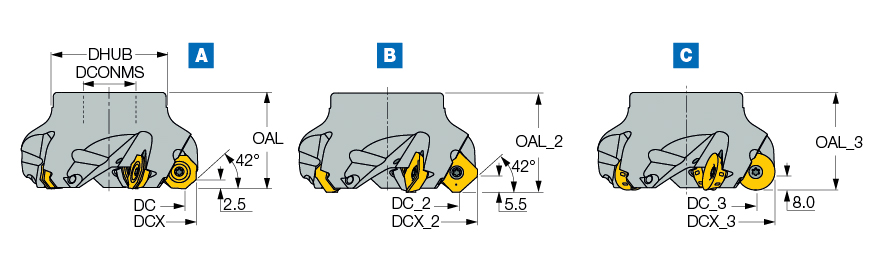

| Remarks | A - with OEM. 060405... OECR 06.. inserts B - with SECT/SEMT 1404... inserts C - with REM. 1505... round insert |
Shipping Info
Package Weight
3.170
