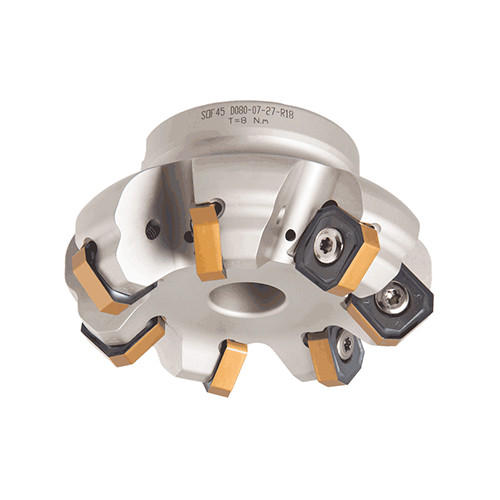

SOF45 D160-10-40-R18
Indexable Face Mill; 177 mm Dia. × 40 mm Shank Dia. × 61.5 mm OAL × 5 mm LOC ; 10 Inserts ; 45 Degrees

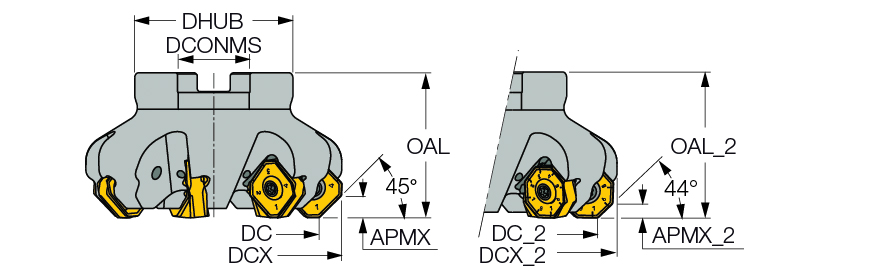

| Cutting Diameter (DC/DCX) | 177 mm | Master Insert Identification (MIID) | ONMU 0706 |
| Cutting Diameter (DC) | 160 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 177 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 10 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 8 mm | Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Overall Length (OAL) | 63 mm | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Hub Diameter (DHUB) | 95 mm | Tool Type | 45° Facemills |
| Arbor Style | C |
Product Features
| Family Description | 45° face mills carrying square or octagonal double-sided inserts with 8/16 cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
10.276
