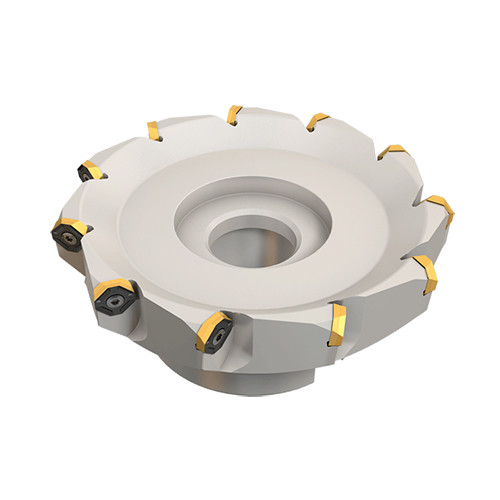

IQ845 FSY D200-14-60-R07
Indexable Face Mill; 209.4 mm Dia. × 60 mm Shank Dia. × 63 mm OAL × 4.6 mm LOC ; 14 Inserts ; 50 Degrees

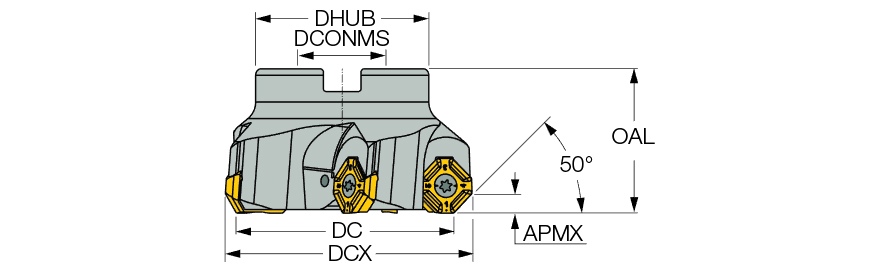

| Cutting Diameter (DC/DCX) | 209.4 mm | Master Insert Identification (MIID) | IQ845 SYHU 0704ADN |
| Cutting Diameter (DC) | 200 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 209.4 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 14 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 4.6 mm | Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 60 mm | Measurement Type | Metric |
| Overall Length (OAL) | 63 mm | Tool Cutting Edge Angle (KAPR) | 50 Degrees |
| Hub Diameter (DHUB) | 135 mm | Tool Type | 45° Facemills |
| Arbor Style | C |
Product Features
| Family Description | 50° face mills carrying screw clamped square Inserts with 8 cutting edges. Feature very rigid dove tail clamping and positive pocket orientation. | Country of Origin | Israel |
Shipping Info
Package Weight
14.118
