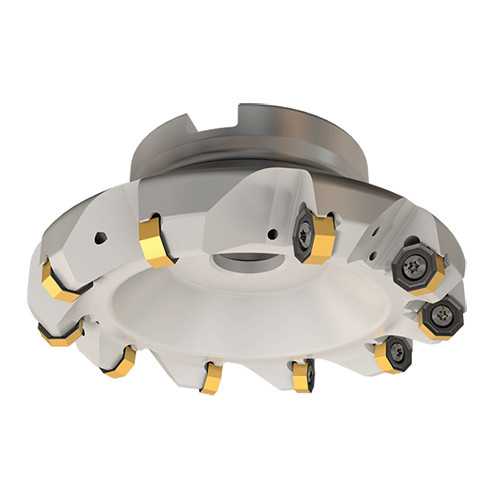

SOF45 8/16-D100-12-31.75R

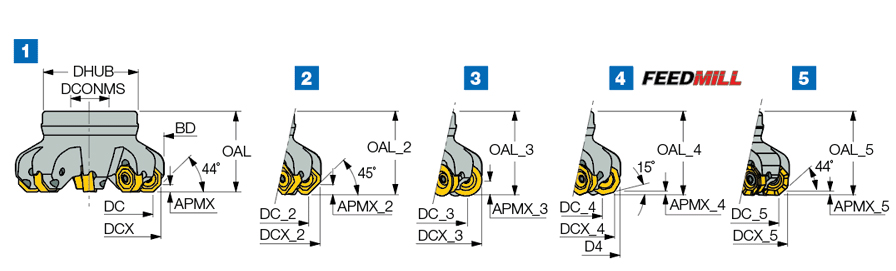

| Cutting Diameter (DC/DCX) | 108 mm | Master Insert Identification (MIID) | ONHU 050500-PL |
| Cutting Diameter (DC) | 100 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 108 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 12 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 3.5 mm | Application | | Facing | Profiling | Rampdown | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Tool Cutting Edge Angle (KAPR) | 44 Degrees |
| Hub Diameter (DHUB) | 70 mm | Tool Type | 45° Facemills |
| Arbor Style | B |
Product Features
| Family Description | Multifunction Face Mills for Octagonal, Square and Round Insert Contours with Various Entry Angles. | Country of Origin | Israel |
| Remarks | 1- with ONMU 0505... insert 2- with S845 SNMU 1305... insert 3- with RXMT 1607N insert 4- with OXMT 0507R08-FF insert 5- with OXMT 050705-R-HP insert Use only Torx Plus keys For adaptation, click on More Info |
Shipping Info
Package Weight
3.558
