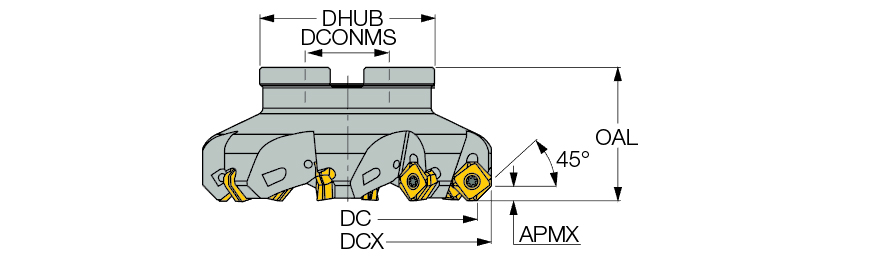

| Cutting Diameter (DC/DCX) | 139.8 mm | Master Insert Identification (MIID) | S845 SXMU 1606ADTR |
| Cutting Diameter (DC) | 125 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 139.8 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 14 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 7.15 mm | Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 38.1 mm | Measurement Type | Metric |
| Overall Length (OAL) | 63 mm | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Hub Diameter (DHUB) | 82 mm | Tool Type | 45° Facemills |
| Arbor Style | B |
Product Features

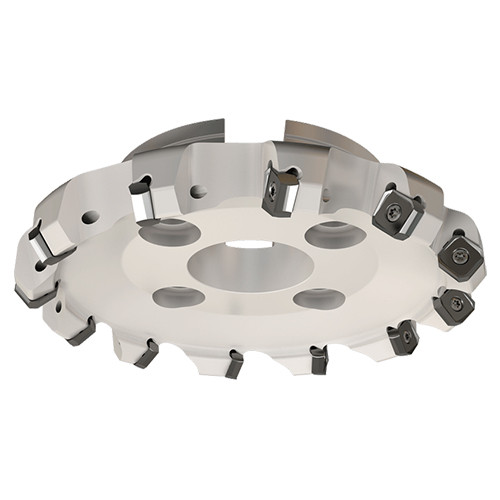

| Family Description | 45° face mills, featuring very rigid clamping, carrying inserts with 8 helical, right-hand cutting edges, providing a very economical solution (HELIDO845). | Country of Origin | Israel |
| Remarks | Wiper inserts are used on face mill cutters, provide improved surface finish, eliminate the use of other finishing cutters. |
Shipping Info
Package Weight
7.421
