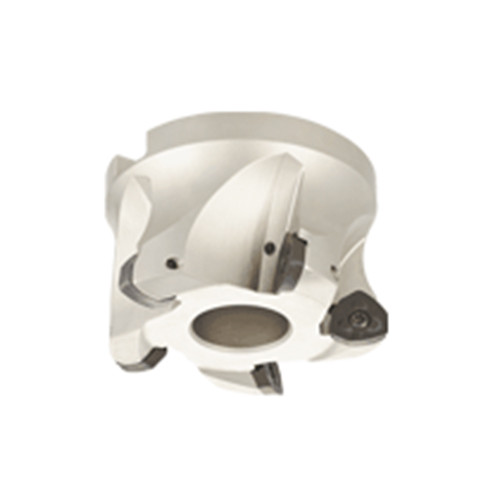

FF FW D80-31.75-09-C

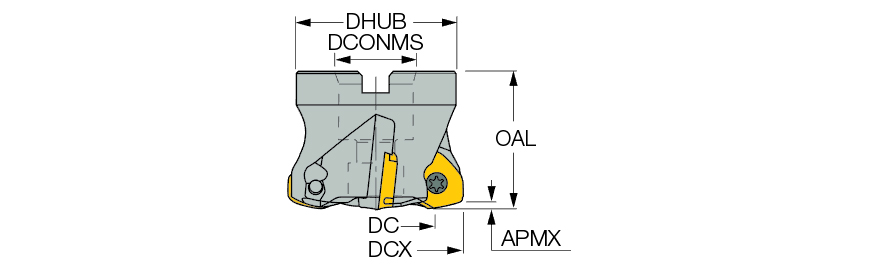

| Cutting Diameter (DC/DCX) | 80 mm | Master Insert Identification (MIID) | FF WOMT09T3 |
| Cutting Diameter (DC) | 59.2 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 80 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 5 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 2 mm | Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm | Measurement Type | Metric |
| Overall Length (OAL) | 60 mm | Tool Cutting Edge Angle (KAPR) | 13 Degrees |
| Hub Diameter (DHUB) | 76 mm | Tool Type | Fast Feed Face mill |
| Arbor Style | A |
Product Features
| Family Description | FEEDMILL, fast feed face mills using FF WOMT... inserts. Can run at very high feed rates of up to 1.5 mm/t at small DOC, resulting in very high metal removal rates. | Country of Origin | Israel |
Shipping Info
Package Weight
2.837
