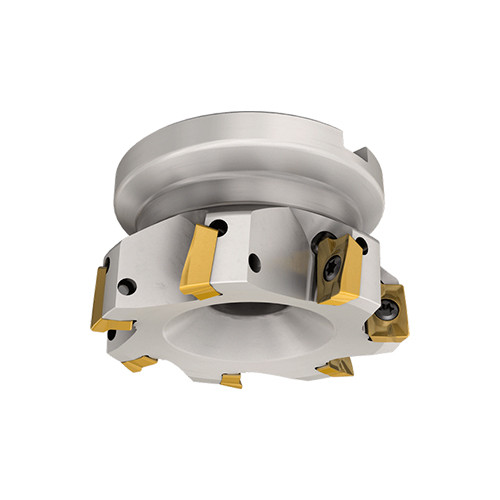

HM90 F90A D100-8-31.75
Indexable Face Mill; 100 mm Dia. × 31.75 mm Shank Dia. × 59.74 mm OAL × 14.3 mm LOC ; 90 Degrees

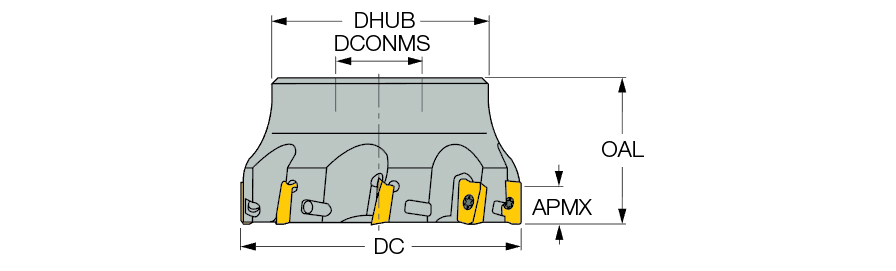

| Cutting Diameter (DC/DCX) | 100 mm | Master Insert Identification (MIID) | ADKT 1505PDTR |
| Cutting Diameter (DC) | 100 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 100 mm | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 14.3 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm | Application | | Counter Boring | Facing | Fast Feed Milling | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 60 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 70 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | B | Tool Type | 90° Facemills |
Product Features
| Family Description | HELI2000, 90° face mills carrying HM90 ADKT 1505... inserts | Country of Origin | Israel |
| Remarks | 1- with standard square insert 2- with FF (fast feed) insert For user guide, see pages For adaptation, click on More Info |
Shipping Info
Package Weight
4.239
