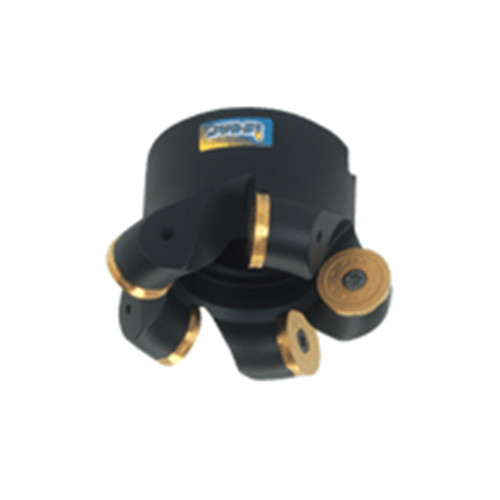

FR D060A080-05-27-20
Indexable Face Mill; 80 mm Dia. × 27 mm Shank Dia. × 50 mm OAL × 10 mm LOC ; 5 Inserts

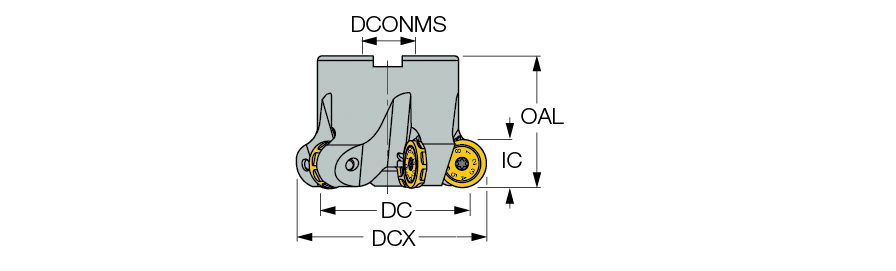

| Cutting Diameter (DC/DCX) | 80 mm | Arbor Style | B |
| Cutting Diameter (DC) | 60 mm | Master Insert Identification (MIID) | RCCW 2005 |
| Cutting Diameter Maximum (DCX) | 80 mm | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 5 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 10 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Application | | Facing | Plunging & Recessing | Profiling | Rampdown | |
| Overall Length (OAL) | 50 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 58.5 mm | Tool Type | Round corner cutters |
Product Features
| Family Description | Face mills with round inserts for profiling and milling of round corners (ROUNDMILL). | Country of Origin | Israel |
Shipping Info
Package Weight
1.634
