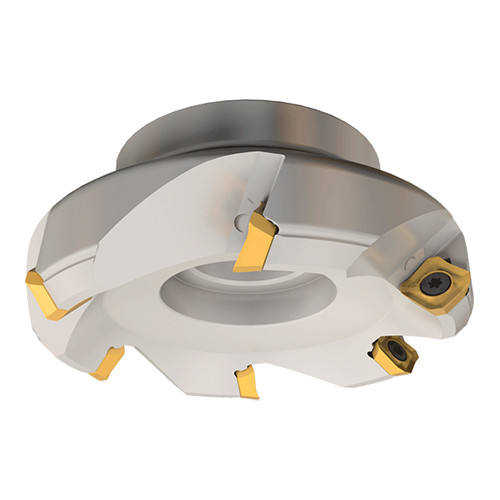

F45ST D80.......JPN

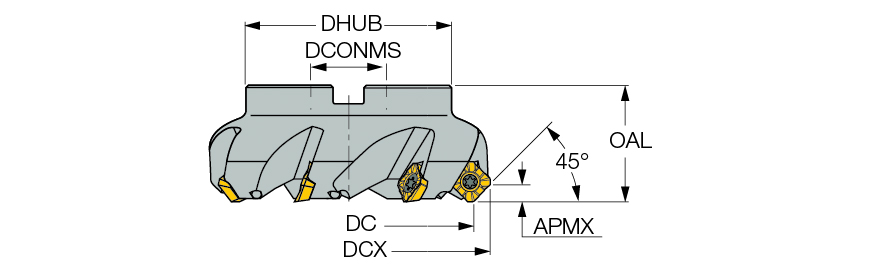

| Cutting Diameter (DC/DCX) | 93.1 mm | Master Insert Identification (MIID) | SEMT 1204AFTN-76 |
| Cutting Diameter (DC) | 80 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 93.1 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 0 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 6.5 mm | Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Hub Diameter (DHUB) | 63 mm | Tool Type | 45° Facemills |
| Arbor Style | B |
Product Features
| Family Description | 45° screw clamped face mills carrying SEK/MT 12... inserts. | Country of Origin | Israel |
| Remarks | SE..1204 inserts are directly mounted on the cutter SE..12T3 optional thinner inserts are mounted on a seat - TSE 12T3-N |
Shipping Info
Package Weight
4.409
