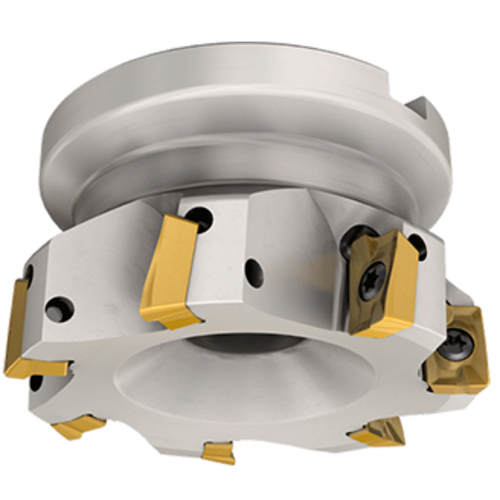

F90AP D80-7-27-16
Indexable Face Mill; 80 mm Dia. × 27 mm Shank Dia. × 50 mm OAL × 15 mm LOC ; 7 Inserts
| Cutting Diameter (DC/DCX) | 80 mm | Master Insert Identification (MIID) | APKT 1604-PDR-HM |
| Cutting Diameter (DC) | 80 mm | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 7 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 15 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Application | | Counter Boring | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 50 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 54.85 mm | Tool Type | 90° Facemills |
| Arbor Style | A |
Product Features
| Family Description | HELIMILL, 90° face mills carrying HM90 APKT 1604... inserts | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info |
Shipping Info
Package Weight
2.780
