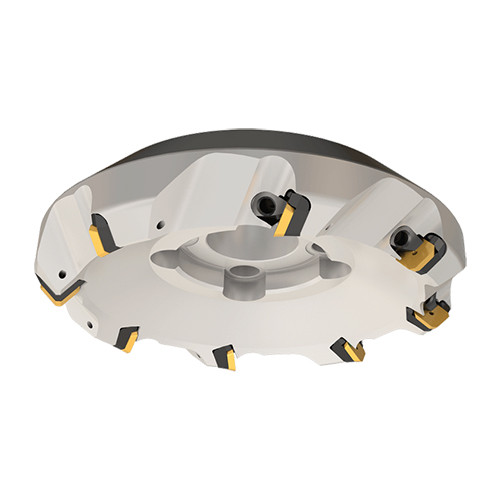

F45E D160-40

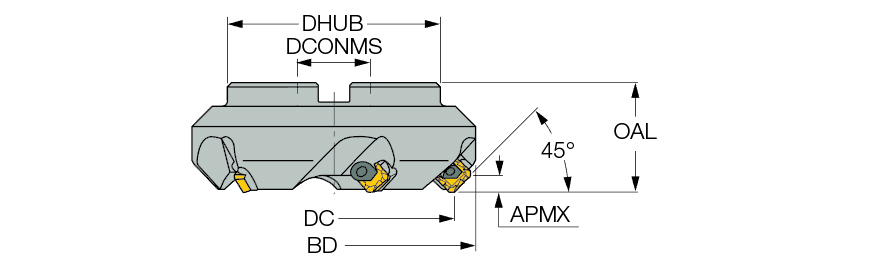

| Cutting Diameter (DC/DCX) | 160 mm | Master Insert Identification (MIID) | SEAN 1203AF-N |
| Cutting Diameter (DC) | 160 mm | Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 8 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 6.5 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Application | | Facing | Plunging & Recessing | Slanted Shoulder & Chamfer | |
| Overall Length (OAL) | 63 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 92 mm | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Arbor Style | C | Tool Type | 45° Facemills |
Product Features
| Family Description | 45° face mills carrying SEKN/R 12... inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
12.743
