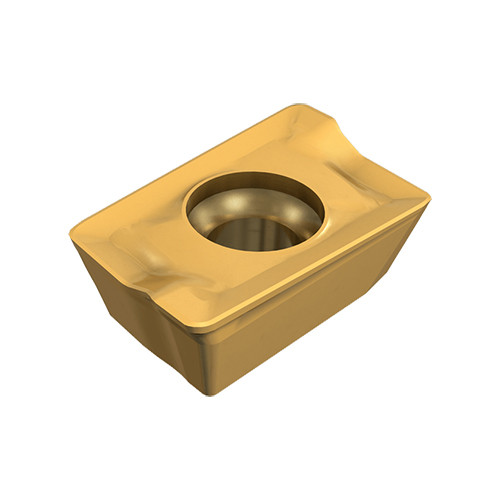

ADKT 1505PDTR-RM IC5100
Parting Off Insert; 0.098 CW × 0.0079″ Corner Radius ; Neutral ; Carbide ; TiAlN ; IC908
| Applicable Material | | Cast Iron | | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Application | | Bottom Shouldering | Counter Boring | Countersinking | Drill Mill | Facing | Plunging & Recessing | Rampdown | Shouldering | Side Slotting | Slanted Shoulder & Chamfer | Slotting | T Slotting | | Cutting Direction (HAND) | Right Hand |

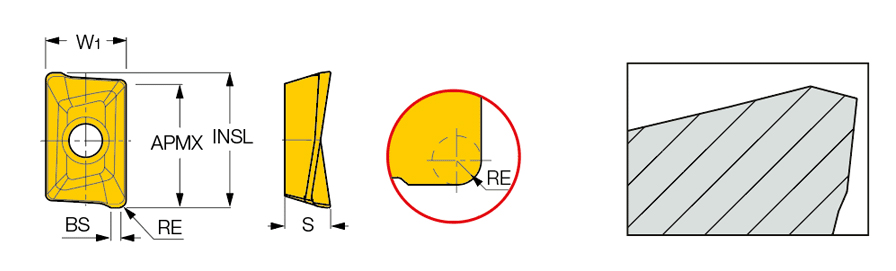

| Insert Length (INSL) | 0.62″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0394″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.472″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Width (W1) | 0.376″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.222″ | Cutting Edge Effective Length (LE) | 0.547″ |
| Wiper Edge Length (BS) | 0.063″ | Measurement Type | Inch |
| Coating | TiCN+Al2O3 | Body Material | Carbide |
| Grade | IC5100 |
Product Features
| Family Description | HELIMILL inserts with reinforced helical cutting edge for interrupted cut and heavy machining. | Country of Origin | Israel |
Shipping Info
Package Weight
0.018
