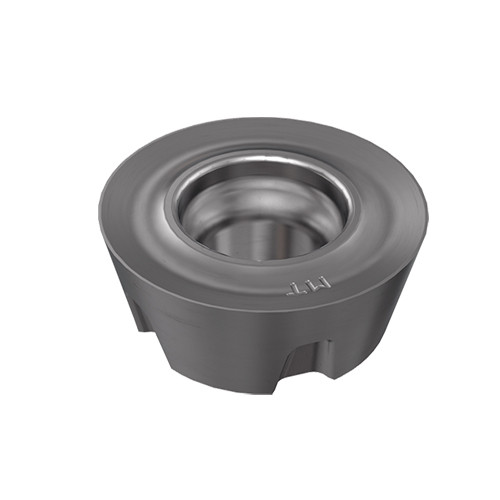

RPMX 1204M0 IC5500
| Applicable Material | | Steel | | Maximum Feed per Tooth (fz(max)) | 0.0177 ″/tooth |
| Application | | Facing | Profiling | Rampdown | | Cutting Direction (HAND) | Neutral |

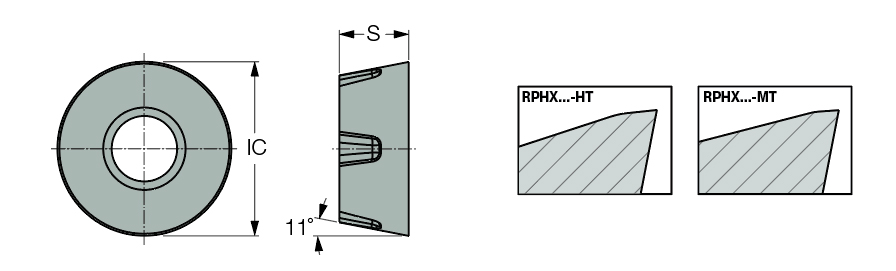

| Corner Radius (RE) | 0.2362″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.472″ | Minimum Feed per Tooth (fz(min)) | 0.0079 ″/tooth |
| Insert Thickness (S) | 0.188″ | Number of Cutting Edges | 5 |
| Coating | TiCN+Al2O3+TiN | Measurement Type | Inch |
| Grade | IC5500 | Body Material | Carbide |
Product Features
| Family Description | Round milling inserts with specially shaped indexing grooves. Used for roughing and finishing applications on alloyed and stainless steels, specifically in the die and mold industry | Country of Origin | Israel |
| Remarks | MT - Recommended mainly for steel, ferritic and martensitic stainless steel (ISO P group) HT - Intended mostly for austenitic, duplex stainless steel and high temperature alloys (ISO M and S groups) |
Shipping Info
Package Weight
0.011
