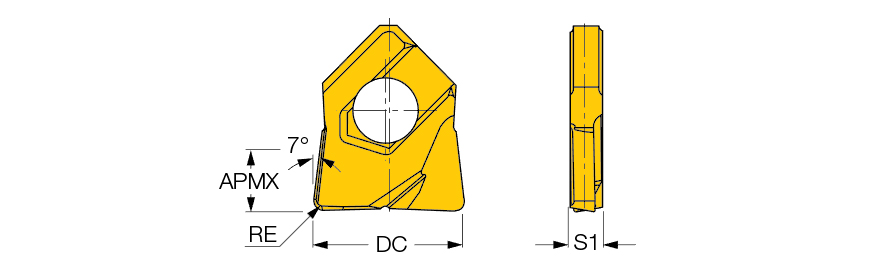

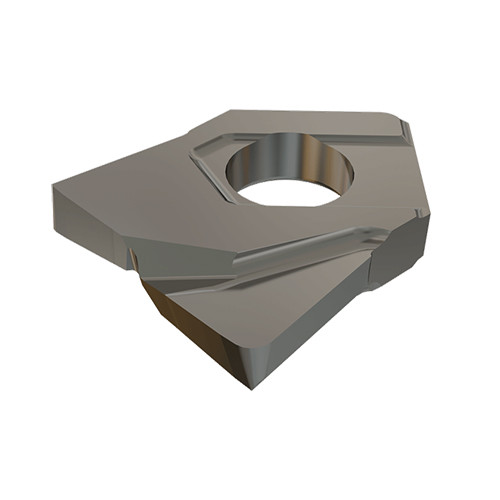

HTR D200-R4.0-QF IC908
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| Application | | Slotting | Undercutting | | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 4 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 8 mm | Tool Type | Single sided Inserts |
| Insert Width (W1) | 20 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Insert Thickness (S) | 4.65 mm | Number of Cutting Edges | 2 |
| Insert Included Angle (EPSR) | 83 Degrees | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 |
Product Features
| Family Description | Toroidal insert with a variety of corner radii, used for machining cavity fillets, pockets and for machining next to steep walls. Accuracy within 0.01mm, 2 cutting edges (fully effective). Part of the BALLPLUS multifunction milling system. | Country of Origin | Israel |
Shipping Info
Package Weight
0.014
