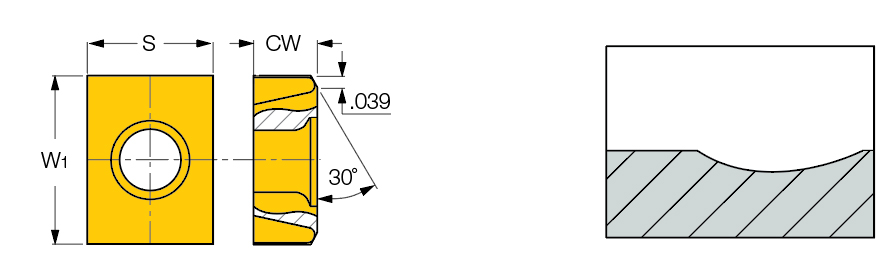

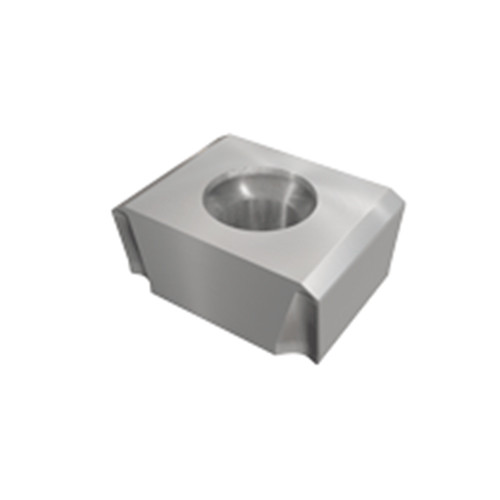

LNET 1245-30X1-N IC910
| Applicable Material | | Steel | Cast Iron | | Corner Chamfer Width (CHW) | .039″ |
| Application | | Bottom Shouldering | Shouldering | Side Slotting | Slitting | Slotting | T Slotting | | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 1/2″ | Tool Type | Mill Tangential Inserts |
| Insert Thickness (S) | 3/8″ | Minimum Feed per Tooth (fz(min)) | 0.0024 ″/tooth |
| Insert Included Angle (EPSR) | 90 Degrees | Number of Cutting Edges | 4 |
| Coating | AlTiN | Measurement Type | Inch |
| Grade | IC910 | Body Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
Product Features
| Family Description | TANGSLOT Tangentially clamped inserts with 4 cutting edges for parting and slitting. The inserts have a chipformer that reduces the cutting forces and leaves clean workpiece edges. | Country of Origin | Israel |
| Remarks | Used mainly for parting, leaving a very small burr on the corner being cut. |
Shipping Info
Package Weight
0.017
