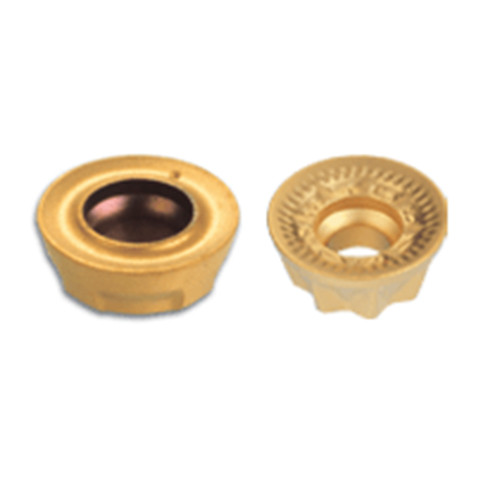

RXCW 0802 IC950
| Applicable Material | | Steel | Cast Iron | | Cutting Edge Material | Carbide |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 0.1575″ | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Inscribed Circle Diameter (IC) | 0.315″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.094″ | Measurement Type | Inch |
| Grade | IC950 | Body Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
Product Features
| Family Description | Precision ground flat rake, round milling inserts with a star-shaped bottom for indexing and preventing insert rotation. Recommended for short chipping materials. | Country of Origin | Israel |
Shipping Info
Package Weight
0.005
