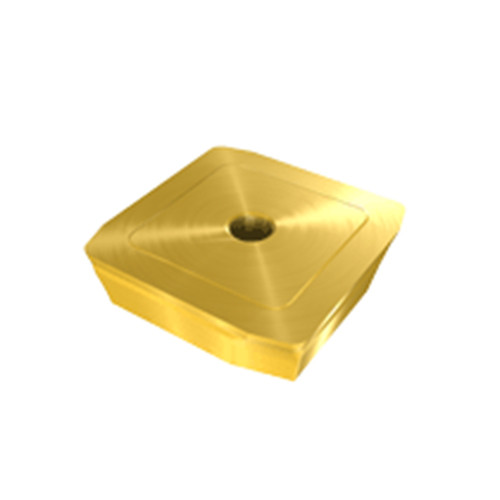

SPK 53EDTR-42 IC50M
| Applicable Material | | Steel | Stainless Steel | | Grade | IC50M |
| Application | | Facing | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |

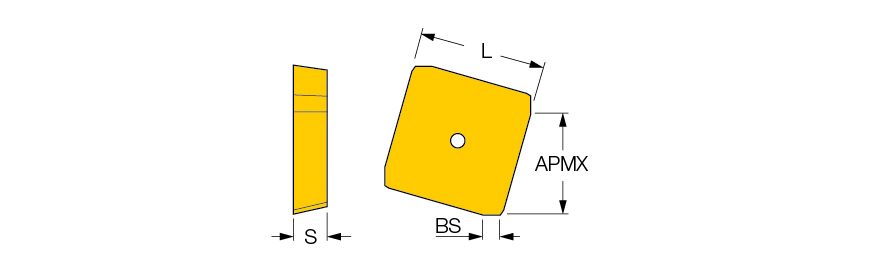

| Insert Length (INSL) | 5/8″ | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.4527″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 5/8″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.187″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Wiper Edge Length (BS) | 0.055″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
Product Features
| Family Description | Flat rake milling inserts for general use. The -42 design provide an improved tool life. | Country of Origin | Israel |
Shipping Info
Package Weight
0.033
