| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | IC808 |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |

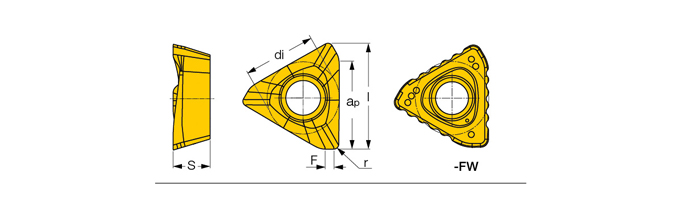

| Insert Length (INSL) | 0.667″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0157″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.5118″ | Figure | 3 |
| Inscribed Circle Diameter (IC) | 0.449″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Thickness (S) | 0.239″ | Number of Cutting Edges | 3 |
| Wiper Edge Length (BS) | 0.055″ | Cutting Edge Effective Length (LE) | 0.512″ |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
Product Features

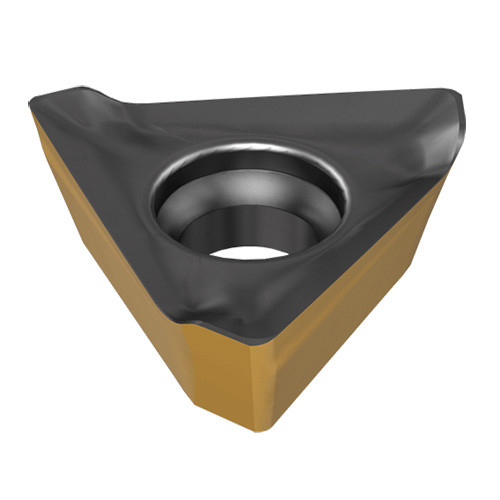

| Family Description | Triangular inserts with 3 helical cutting edges for 90° shoulder accuracy. For general use applications | Country of Origin | Israel |
| Remarks | When installing HM390 size 15 inserts with a corner radius greater than .126, modify the tool body by rounding the corner of the insert pocket, as detailed in More Info For HM390 TDKT 1505PDR-FW insert clamping order instructions, watch the attached video film |
Shipping Info
Package Weight
0.020
