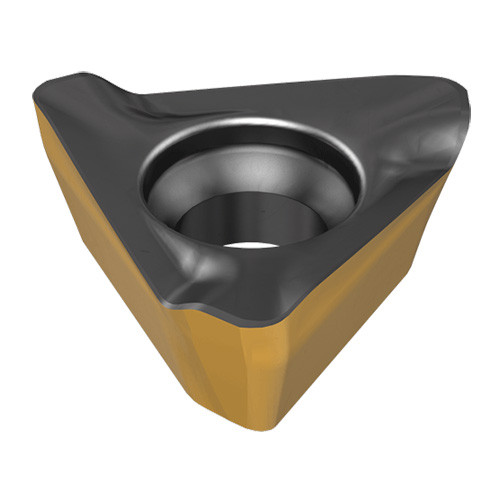

HM390 TPKT 1003PDR IC5600
| Applicable Material | | Steel | | Coating | TiCN+Al2O3 |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Grade | IC5600 |

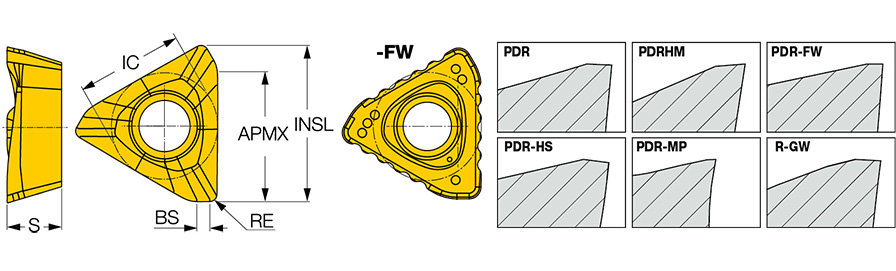

| Insert Length (INSL) | 0.429″ | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Corner Radius (RE) | 0.0315″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.315″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Inscribed Circle Diameter (IC) | 0.295″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.152″ | Cutting Edge Effective Length (LE) | 0.315″ |
| Wiper Edge Length (BS) | 0.028″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Body Material | Carbide |
Product Features
| Family Description | Triangular inserts with 3 helical cutting edges for 90° shoulder accuracy. For general use applications | Country of Origin | Israel |
| Remarks | When installing HM390 size 10 inserts with a corner radius greater than .079, modify the tool body by rounding the corner of the insert pocket, as detailed in More Info |
Shipping Info
Package Weight
3.3
