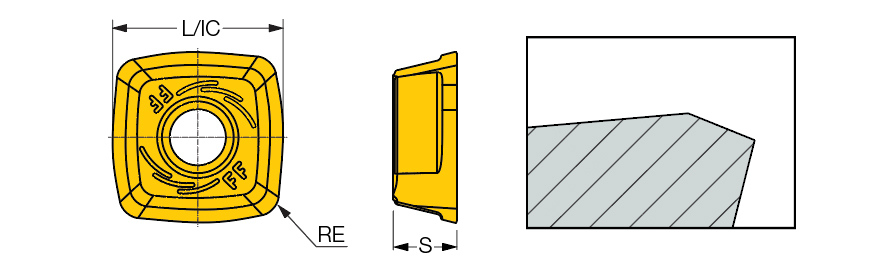

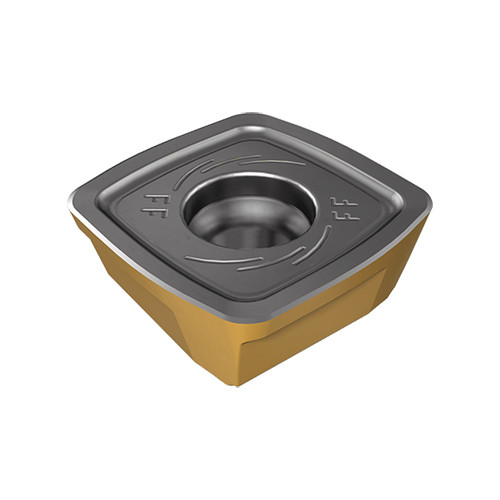

SDMT 1205R16T-FF IC808
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0551 ″/tooth |
| Application | | Facing | Fast Feed Milling | Plunging & Recessing | Profiling | Rampdown | Shouldering | Side Plunging | Slotting | | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 0.539″ | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 0.063″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Thickness (S) | 0.201″ | Number of Cutting Edges | 4 |
| Wiper Edge Length (BS) | 0.079″ | Measurement Type | Inch |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Grade | IC808 |
Product Features
| Family Description | Insert with 4 cutting edges for fast feed milling | Country of Origin | Israel |
Shipping Info
Package Weight
0.020
