| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Direction (HAND) | Neutral |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | | Cutting Edge Material | Carbide |

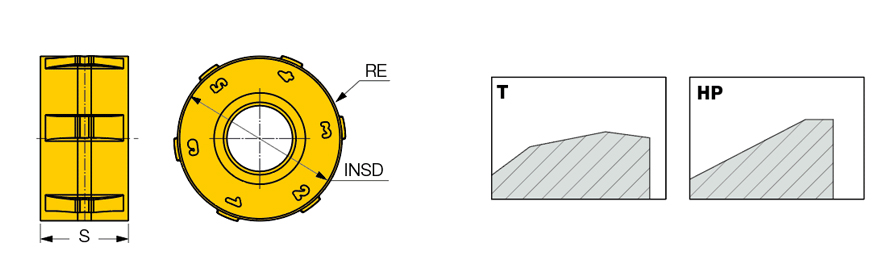

| Corner Radius (RE) | 0.2362″ | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.214″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Coating | TiAlN+AlTiN+TiN | Number of Cutting Edges | 12 |
| Grade | IC808 | Measurement Type | Inch |
| Maximum Feed per Tooth (fz(max)) | 0.0138 ″/tooth | Body Material | Carbide |
Product Features
| Family Description | Double-sided round inserts with 12 cutting edges for profile milling | Country of Origin | Israel |
| Remarks | HP- for austenitic stainless steel, titanium and high temperature alloys and soft steel T- for steel, ferritic and martensitic stainless steel, cast iron and hardened steel |
Shipping Info
Package Weight
8.04
