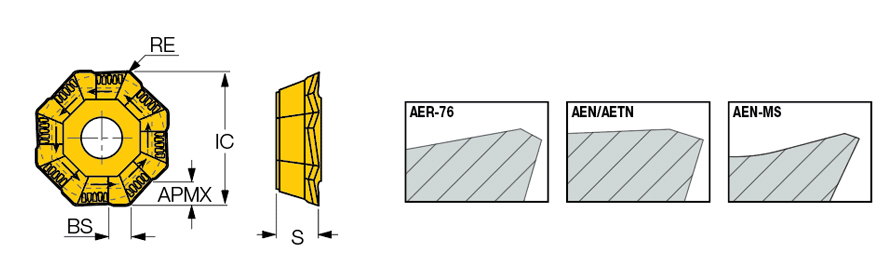

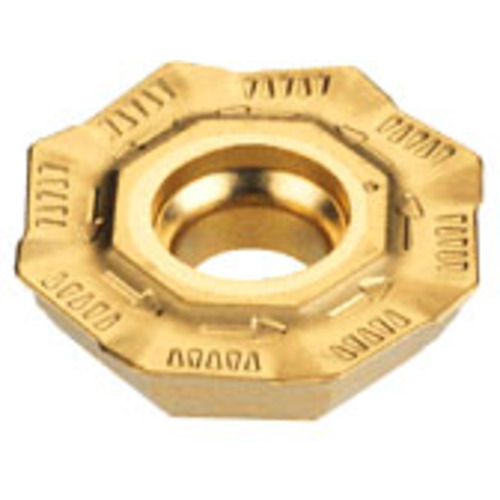

OFMT 07T3-AEN-MS IC830
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | IC830 |
| Application | | Facing | Helical Interpolation | Rampdown | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.0118 ″/tooth |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.157″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 0.711″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Thickness (S) | 0.179″ | Number of Cutting Edges | 8 |
| Wiper Edge Length (BS) | 0.063″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 135 Degrees | Body Material | Carbide |
| Coating | AlTiN+TiN |
Product Features
| Family Description | HELIOCTO, Octagonal milling inserts for general use. | Country of Origin | Israel |
Shipping Info
Package Weight
0.032
