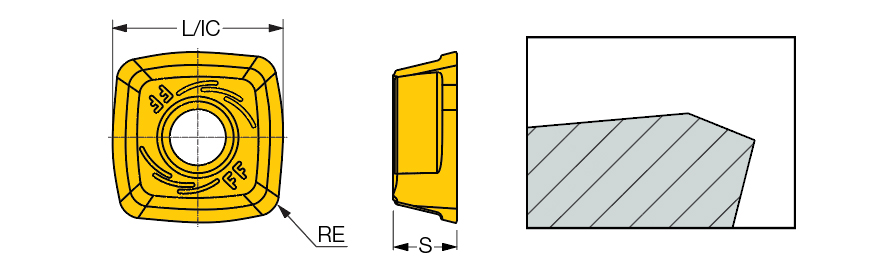

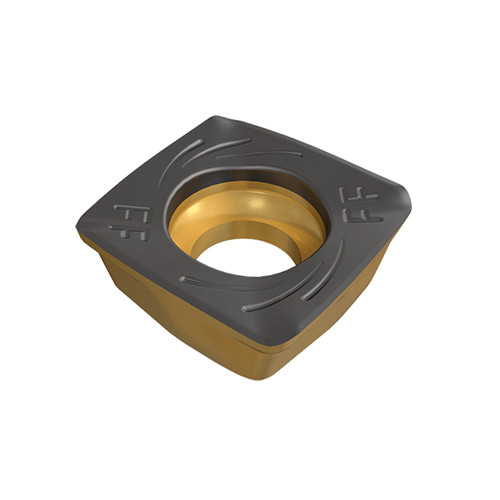

SPMT 1004R15T-FF IC5600
| Applicable Material | | Steel | | Maximum Feed per Tooth (fz(max)) | 0.0551 ″/tooth |
| Application | | Facing | Fast Feed Milling | Plunging & Recessing | Profiling | Rampdown | Shouldering | Side Plunging | Slotting | | Tool Type | Single sided Inserts |
| Insert Length (INSL) | 0.236″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Corner Radius (RE) | 0.059″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.14″ | Measurement Type | Inch |
| Coating | TiCN+Al2O3 | Body Material | Carbide |
| Grade | IC5600 |
Product Features
| Family Description | Insert with 4 cutting edges for fast feed milling | Country of Origin | Israel |
Shipping Info
Package Weight
0.010
