BLR D1.50-MFW IC830
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.006 ″/tooth |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | | Cutting Direction (HAND) | Neutral |

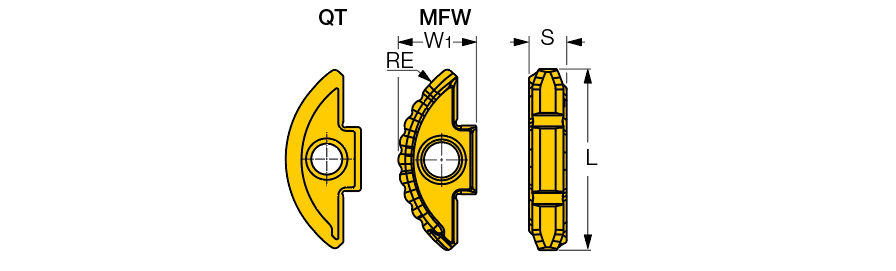

| Insert Length (INSL) | 1.224″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 3/4″ | Tool Type | Double sided Inserts |
| Insert Width (W1) | 0.531″ | Minimum Feed per Tooth (fz(min)) | 0.003 ″/tooth |
| Insert Thickness (S) | 0.21″ | Number of Cutting Edges | 2 |
| Coating | AlTiN+TiN | Measurement Type | Inch |
| Grade | IC830 | Body Material | Carbide |
Product Features
| Family Description | Round segment double-sided inserts for ball nose milling cutters | Country of Origin | Israel |

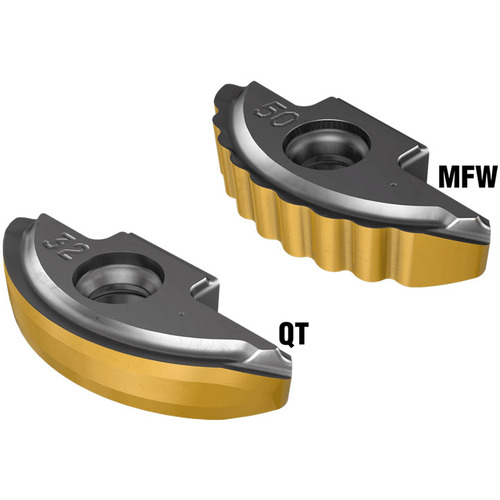

| Remarks | MFW - Serrated cutting edge for roughing operations QT - Round edge for finishing applications |
Shipping Info
Package Weight
21.6
