| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 6 mm | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 5.43 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Coating | AlTiN+TiAlSiN+TiSiN | Measurement Type | Metric |
| Grade | IC882 | Body Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 0.35 mm/tooth |
Product Features

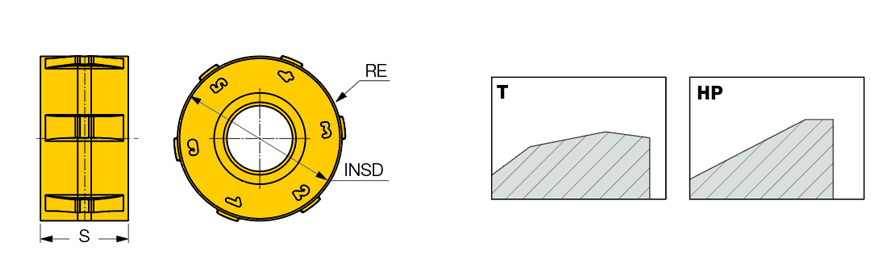

| Family Description | Double-sided round inserts with 12 cutting edges for profile milling | Country of Origin | Israel |
| Remarks | HP- for austenitic stainless steel, titanium and high temperature alloys and soft steel T- for steel, ferritic and martensitic stainless steel, cast iron and hardened steel |
Shipping Info
Package Weight
0.016
