HSM90S APCR 140508R-P IC08
Milling Insert; 0.984″ Length × 0.492″ Width × 0.238″ Thickness ; IC08 ; Carbide ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Maximum Feed per Tooth (fz(max)) | 0.3 mm/tooth |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |

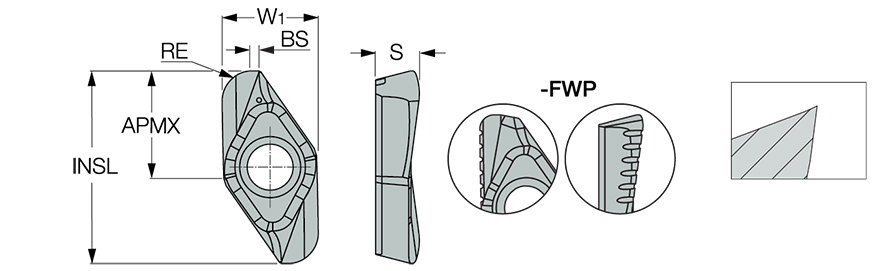

| Insert Length (INSL) | 25 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Tool Type | Mill AL, HTA Geometric Inserts |
| Depth of Cut Maximum (APMX) | 13.5 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Insert Width (W1) | 12.5 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 6.05 mm | Cutting Edge Effective Length (LE) | 10 mm |
| Wiper Edge Length (BS) | 1.1 mm | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC08 |
Product Features
| Family Description | HELIALU super positive and polished rake inserts for machining aluminum at high rotation speed. The insert features a groove on its bottom, designed to improve resistance to centrifugal force. | Country of Origin | Israel |
| Remarks | When machining at very high cutting speed and replacing the insert, it is also recommended to replace the screw. |
Shipping Info
Package Weight
0.029
